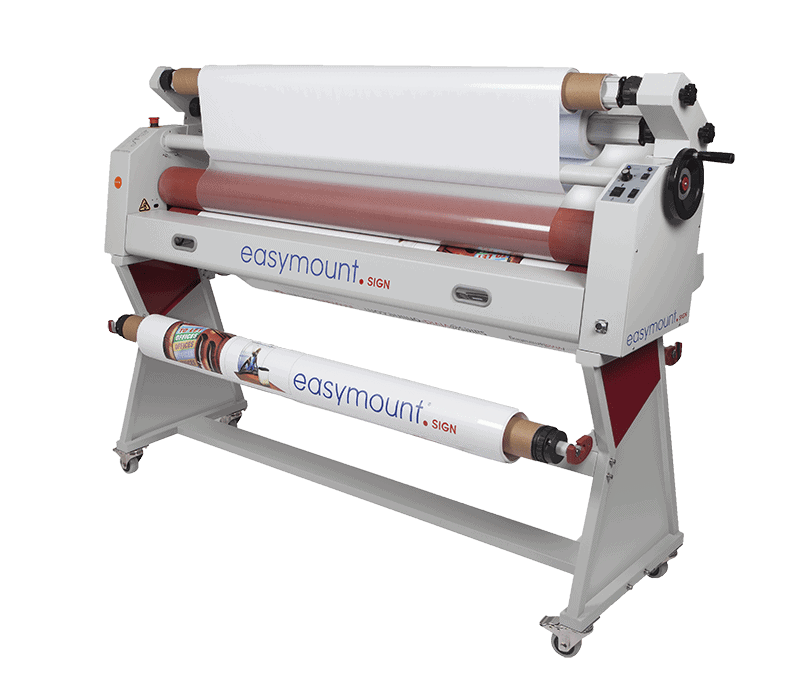

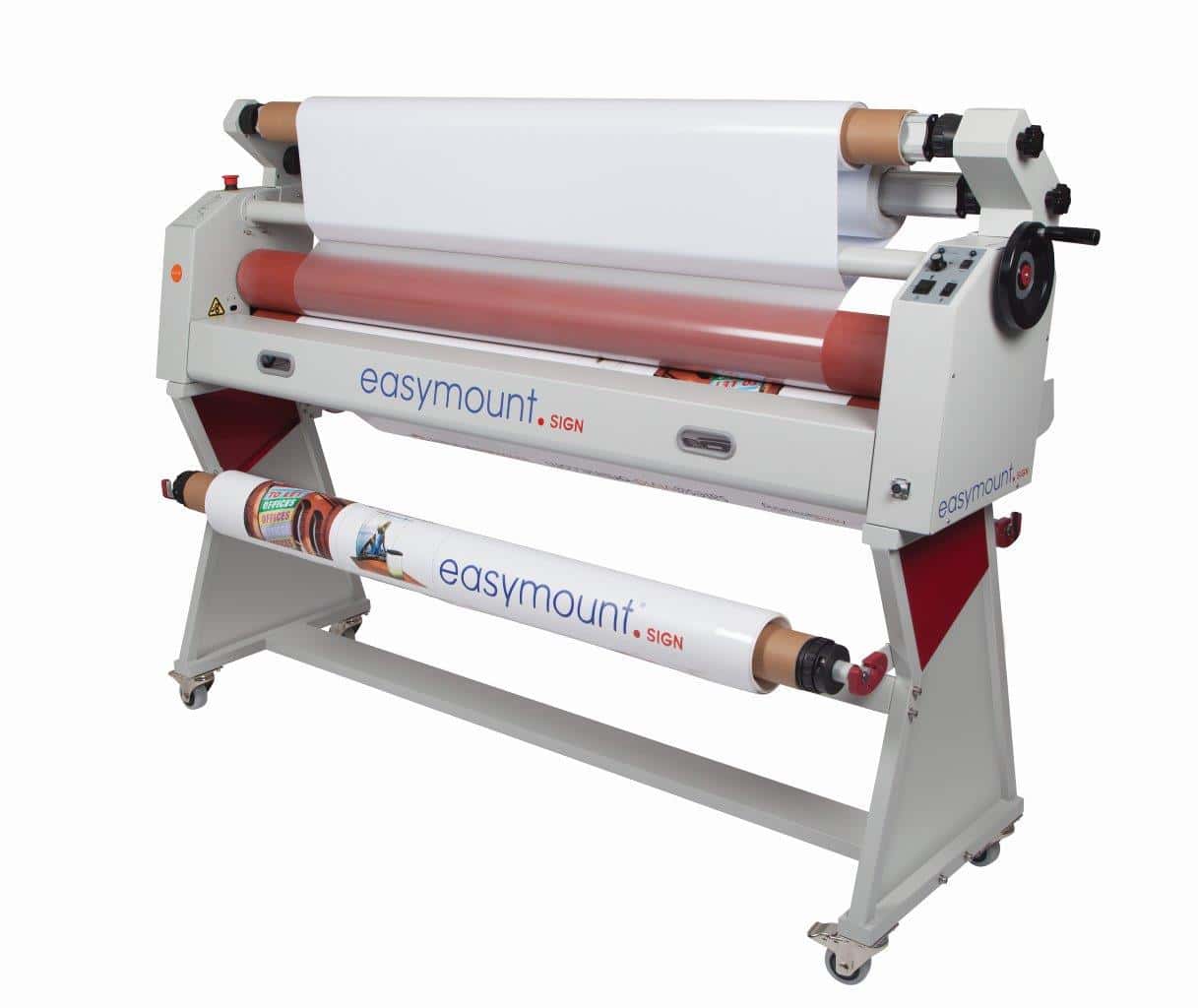

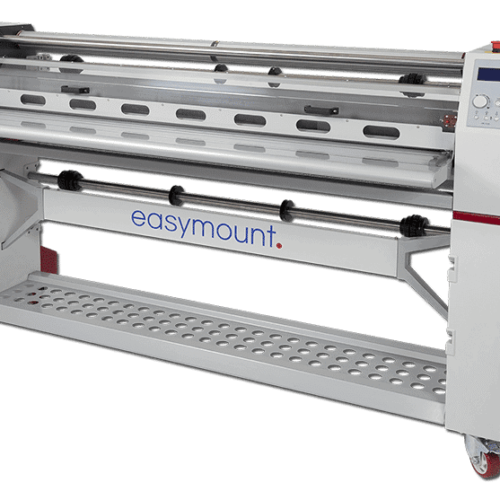

Easymount Sign EM-S1600H Hot Wide Format Laminating System

Easymount Sign EM-S1600H Hot Wide Format Laminating System - Image 3

Easymount Sign EM-S1600H Hot Wide Format Laminating System - Image 4

Easymount Sign EM-S1600H Hot Wide Format Laminating System - Image 5

The Easymount Sign EM-S1600H is a 1620mm/63″ heat assisted wide format laminating and mounting system, which contains rollers that heat up when used. Designed for sign makers and print finishers, the Easymount Sign range of wide format laminating systems are entry- level simple solutions for professional, cost effective finishing. Laminate single-sided wide format originals that can withstand heat, including signs, banners, windows graphics, reel to reel laminates, and more. The Easymount Sign range of heat assisted laminators also includes the EM-S1400H, a 1420mm/55″ . The Easymount Sign wide format laminators can also be configured as a cold laminating system for heat sensitive materials, including the EM-S1400C , and EM-S1600C models. All Easymount Sign wide format laminating and mounting systems include a take-up unit.

Description

The Easymount Sign EM-S1600H is a 1620mm/63″ heat-assisted wide format laminating and mounting system, which contains rollers that heat up when used. Designed for sign makers and print finishers, the Easymount Sign range of wide format laminating systems are entry- level simple solutions for professional, cost effective finishing. Laminate single-sided wide format originals that can withstand heat, including signs, banners, windows graphics, reel to reel laminates, and more. The Easymount Sign range of heat assisted laminators also includes the EM-S1400H, a 1420mm/55″ . The Easymount Sign wide format laminators can also be configured as a cold laminating system for heat sensitive materials, including the EM-S1400C and EM-S1600C models. All Easymount Sign wide format laminating and mounting systems include a take-up unit.

Easymount wide format laminating systems save money and time by eliminating the need to outsource to print finishers, and keeping control of the job from wide format print to wide format finish. Lamination protects and preserves all kinds of wide format prints from spills, grease, chemicals, rain, fingerprints, abrasions, creases, wrinkles and sunlight. Lamination enhances almost any type of wide format print by deepening and brightening colours and improving contrast.

The Easymount range of laminating systems include the following wide format sizes: 650mm, 880mm, 1200mm, 1400mm, 1600mm, 1650mm, and 2100mm (26, 34, 47, 55, 63, 65 and 83 inches). Easymount wide format laminating systems are available in cold (uses pressure to laminate, good for heat sensitive originals such as vinyls), single hot (uses heat to laminate, single-sided, good for wide format originals that can withstand heat) , and double hot (uses heat to laminate, double-sided good for wide format originals that can withstand heat and require lamination on both sides).

At Design Supply, an authorised Vivid Laminating Technologies reseller, we work closely with the manufacturer to provide the best solutions available to get the job done for your business and maximise your opportunities. With over 28 years of experience in the large format market, we offer expertise and knowledge in tailoring the exact solution for your specific application.

VIDEOS

Wide Format Laminators

Wide Format Laminators Overview

KEY FEATURES

Save money by laminating and mounting all your wide format prints in-house, and eliminate outsourcing to print finishers. The Easymount Sign EM-S1600H is a highly efficient laminating system at an entry level price. Designed to perform and built to last, with its solid heavy duty construction, the Easymount Sign EM-S1600H includes an integral media take-up unit enables single banners and reel-to-reel laminating of up to 50m or 196 feet, ideal for longer runs.

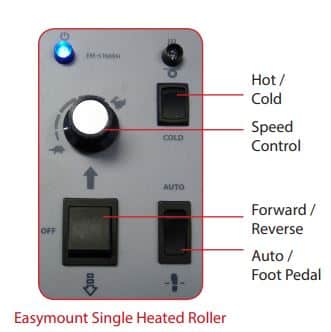

Save time by keeping control of the job, from wide format print to wide format finish. The Easymount Sign EM-S1600H is versatile and easy-to-use. With an impressive laminating speed of 5m/16ft a minute, the EM-S1600H accepts up to 25mm/1″ mounting thickness. The EM-S1600H features self gripping mandrels and a flip down feed tray for easy access to load rolls of material. The large, cambered rollers deliver even and precise pressure, and the magic eye safety feature prevents the rollers from moving when interrupted. A foot pedal is included as standard, and a handy reverse mechanism make it easier to control your jobs. Excess backing liner is kept tidy for disposal with the release liner take-up.

Apply more than just laminates with the Easymount Sign EM-1600H wide format laminating system. The EM-S1600H enables application tapes and vinyls to be laid down, removing the need for squeegeeing by hand.

SPECIFICATIONS

The Easymount Sign EM-S1600H wide format laminating system has a laminating speed of up to 5m/16ft per minute and is able to mount to boards up to 25mm/1″ thick. The EM-S1600H has a warm-up time of ten minutes, and has a laminating temperature range of 0-45ºC/32-113ºF. The EM-S1600H has a patented manual pressure gauge handle located at the side of the laminating system, that ensures you choose the correct setting every time, quickly and easily. The roller diameter is 130mm/5 inches and the film core is 77mm/3 inches.

The Easymount Sign EM-S1600H wide format laminating system handles a full range of cold pressure and thermal laminates including matte, gloss, soft touch, sandtex and anti-graffiti. The EM-1600H is compatible with Vivid Laminating Technologies own brand, BOSS range of cold and thermal laminating films suitable for aqueous and solvent-based inkjet print, as well as fast-curing types such as UV and HP Latex. BOSS media includes mounting films, pressure sensitive laminating films (gloss, ‘crystal’ matte, satin matte, flat matte in 80 and/or 100 micron) 100 micron UV pressure sensitive over laminates (gloss and crystal matte), Sandtex pressure sensitive film and release paper (Sandtex 150 micron, Glitter finish 220 micron) and Anti-Graffiti laminating films (Dry Wipe (UV) and Anti-Graffiti (UV) Outdoor). Our media specialists at Design Supply have the expertise to help you determine the best solutions for your particular laminating and mounting needs.

Count on dependable support to create the best image possible from Vivid Laminating Technologies and Design Supply. For added peace of mind, Easymount Sign EM-S1600H Wide Format Laminating system features a 1 year warranty. Ask us at Design Supply, and we can tailor the best solution possible for your needs.

Specifications

Laminating Speed (m/min / feet/min)	5 / 16
Max. Width (mm / inches)	1620 / 63
Mounting Thickness (mm / inches)	25 / 1
Roller Diameter (mm / inches)	130 / 5
Warm-up Time (mins)	10
Hot Roller Heater System	infrared
Laminating Temperature Range (°C/°F)	0-45 / 32-113
Control Panel	LED
Pressure Adjustment	Manual
Film Core (mm / inches)	77 / 3
Power Supply AC (v, 50Hz)	220/240
Power Supply AC (v, 60Hz)	110
Power Supply Required (Amps)	13
Power Consumption (W)	1200
Dimensions – Width (mm / inches)	2046 / 81
Dimensions – Depth x Height (mm / inches)	550 x 1365 / 22×54
Gross Machine Weight (Kg / lbs)	156 / 344
Warranty	1 Year

WHAT'S IN THE BOX

Easymount Sign EM-S1600H Laminating System

Integral Media Take-Up Unit

Self-gripping Mandrels with single lift mechanism

1 year warranty

Accessories:

Additional Mandrels

DATA SHEETS

Easymount Sign EM-S1400C, EM-S1600C, EM-S1400H, EM-S1600H Wide Format Laminating Systems Data Sheet

Easymount Wide Format Laminating Systems Brochure

MANUFACTURER INFORMATION

Vivid Laminating Technologies Ltd, a UK based company, are Europe’s leading designer and manufacturer of laminators. Committed to developing, improving and upgrading laminating products, Vivid Laminating Technologies products deliver the best quality, the highest levels of reliability, and the most efficient ways of laminating.

Vivid Laminating Technologies design and manufacture laminating, finishing and binding systems along with a full range of supplies including laminator film, laminating pouches and binding consumables. The laminating systems products include Peak, Matrix Duo (single sided and double sided laminating and encapsulation systems), Linea (encapsulation systems), Easymount (wide format laminating and mounting systems), and Matrix ranges. Laminating supplies products are the Boss range. The finishing systems products include Trimfast, Magnum, and Easycoat, Easyguide ranges. The binding systems products includes Magnum range and the binding supplies products are the Imagemaker range.

Vivid Laminating Technologies are ISO 14001 registered, committed to compliance with relevant environmental legalisation and to the adoption to practices and procedures that reduce the risk of environmental damage or harm.
