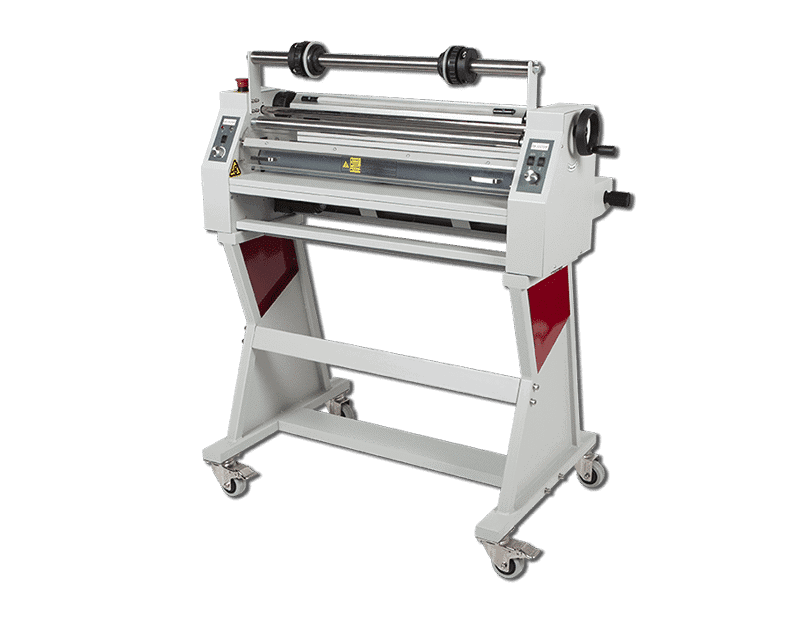

Easymount Single Hot EM-650 SHW Wide Format Laminator

The Easymount Single Hot EM-650 SHW is a 650mm/26″ heat-assisted wide format laminating and up to 15mm/0.6 inch thick mounting system, ideal for laminating single-sided wide format originals that can withstand heat, including signs, banners, windows graphics, reel to reel laminates, and more. Designed for sign makers and print finishers, the Easymount Single Hot range of wide format laminating systems are advanced feature rich solutions for professional, cost effective finishing. The Easymount Single Hot Range of wide format laminating systems also include the EM-1200 SH (1200mm/47 inch), EM-1400 SH (1400mm/55 inch), EM-1600 SH(1600mm/63 inch), and EM-2100 SH(2100mm/83 inch) models.

Description

The Easymount Single Hot EM-650 SHW is a 650mm/26″ heat-assisted wide format laminating and up to 15mm/0.5 inch thick mounting system, ideal for laminating single-sided wide format originals that can withstand heat, including signs, banners, windows graphics, reel to reel laminates, and more. Designed for sign makers and print finishers, the Easymount Single Hot range of wide format laminating systems are advanced feature rich solutions for professional, cost effective finishing. The Easymount Single Hot Range of wide format laminating systems also include the EM-1200 SH (1200mm/47 inch), EM-1400 SH (1400mm/55 inch), EM-1600 SH(1600mm/63 inch), and EM-2100 SH(2100mm/83 inch) models.

Easymount wide format laminating systems save money and time by eliminating the need to outsource to print finishers, and keeping control of the job from wide format print to wide format finish. Lamination protects and preserves all kinds of wide format prints from spills, grease, chemicals, rain, fingerprints, abrasions, creases, wrinkles and sunlight. Lamination enhances almost any type of wide format print by deepening and brightening colours and improving contrast.

The Easymount range of laminating systems include the following wide format sizes: 650mm, 880mm, 1200mm, 1400mm, 1600mm, 1650mm, and 2100mm (26, 35, 47, 55, 63, 65 and 83 inches). Easymount wide format laminating systems are available in cold (uses pressure to laminate, good for heat sensitive originals such as vinyls), single hot (uses heat to laminate, single-sided, good for wide format originals that can withstand heat) , and double hot (uses heat to laminate, double-sided good for wide format originals that can withstand heat and require lamination on both sides).

At Design Supply, an authorised Vivid Laminating Technologies reseller, we work closely with manufacturer to provide the best solutions available to get the job done for your business and maximise your opportunities. With over 28 years of experience in the large format market, we offer expertise and knowledge in tailoring the exact solution for your specific application.

VIDEOS

Wide Format Laminators

Wide Format Laminators Overview

KEY FEATURES

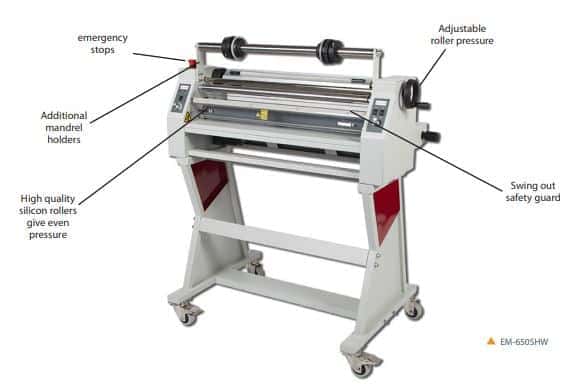

Save money by simultaneously mounting and laminating all your wide format prints up to 650mm/26 inches wide, in-house, and eliminate outsourcing. The Easymount Single Hot EM-650 SHW is an easy-to-use laminating system with advanced features. Designed to perform and built to last, with its solid heavy duty construction, the Easymount Single Hot EM-650 SHW provides a simple solution for professional, cost effective finishing. The EM-650 SHW includes a stand on wheels with a fixed feed table for easy feeding of the wide format print and lockable wheels for safety and flexibility. An easy to use control panel includes multiple language support.

Save time by keeping control of the job, from wide format print to wide format finish. The Easymount Single Hot EM-650 SHW is versatile and easy-to-use. The EM-650 SHW has an impressive laminating speed of 5m/16ft a minute, and accepts up to 15mm/0.5″ mounting thickness. The large roller cores deliver even and precise pressure, and the magic eye safety feature prevents the rollers from moving when interrupted. For controlled operation, a variable speed control and a foot pedal is included, as well as a handy reverse mode and an emergency stop button. The foot pedal means hands-free accelerating of laminating and mounting, and the reverse mode prevents potential jams.

The EM-650 SHW features an optional release liner take-up, ideal for single banners or reel-to-reel laminating up to 50 meters or 196 feet, ideal for longer runs.

SPECIFICATIONS

The Easymount Single Hot EM-650 SHW wide format laminating system has a laminating speed of up to 5m/16ft per minute and is able to mount to boards up to 15mm/0.6″ thick. The EM-650 SHW has a warm-up time of ten minutes, and has a laminating temperature range of 0 -130ºC. The two high-quality, large diameter silicon rollers deliver even pressure and are adjustable for different thicknesses up to 15mm/0.6 inch. The EM-650 SHW has a patented manual pressure gauge handle located at the side of the laminating system, that ensures you choose the correct setting every time, quickly and easily. The roller diameter is 65mm/2.5 inches and the film core is 77mm/3 inches.

The Easymount Single Hot EM-650 SHW wide format laminating system handles a full range of cold pressure and thermal laminates including matte, gloss, soft touch, sandtex and anti-graffiti. The EM-650 SHW is compatible with Vivid Laminating Technologies own brand, BOSS range of cold and thermal laminating films suitable for aqueous and solvent-based inkjet print, as well as fast-curing types such as UV and HP Latex. BOSS media includes mounting films, pressure sensitive laminating films (gloss, ‘crystal’ matte, satin matte, flat matte in 80 and/or 100 micron) 100 micron UV pressure sensitive over laminates (gloss and crystal matte), Sandtex pressure sensitive film and release paper (Sandtex 150 micron, Glitter finish 220 micron) and Anti-Graffiti laminating films (Dry Wipe (UV) and Anti-Graffiti (UV) Outdoor). Our media specialists at Design Supply have the expertise to help you determine the best solutions for your particular laminating and mounting needs.

For convenience, additional mandrels are available for the Easymount Single Hot EM-650 SHW wide format laminating system. An optional release liner take-up is also available, for single banners or reel-to-reel laminating up to 50 meters/196 feet.

Count on dependable support to create the best image possible from Vivid Laminating Technologies and Design Supply. For added peace of mind, Easymount Single Hot EM-650 SHW Wide Format Laminating system features a 1 year warranty. Ask us at Design Supply, and we can tailor the best solution possible for your needs.

Specifications
Laminating Speed (m/min / feet/min)	5 / 16
Max. Width (mm / inches)	650 / 26
Mounting Thickness (mm / inches)	15 / o.5
Roller Diameter (mm / inches)	65 / 2.5
Warm-up Time (mins)	10
Hot Roller Heater System	Internal Infrared
Laminating Temperature Range (°C/°F)	0-130 / 32-266
Control Panel	LED
Pressure Adjustment	Manual/Gauge
Film Core (mm / inches)	77 / 3
Power Supply AC (v, 50Hz)	220/240
Power Supply AC (v, 60Hz)	110
Power Supply Required (Amps)	13
Power Consumption (W)	50
Dimensions – Width (mm / inches)	850 / 33
Dimensions – Depth x Height (mm / inches)	300×470 / 12×19
Gross Machine Weight (Kg / lbs)	76 / 168
Warranty	1 Year

WHAT'S IN THE BOX

Easymount Single Hot EM-650 SHW Laminating System

Dust Cover

1 year warranty

Options:

Additional Mandrels

Take-up unit

DATA SHEETS

Easymount EM-650 SHW Wide Format Laminator Data sheet

Easymount Wide Format Laminating Systems Brochure

Easymount Sign EMS-650 Data sheet

MANUFACTURER INFORMATION

Vivid Laminating Technologies Ltd, a UK based company, are Europe’s leading designer and manufacturer of laminators. Committed to developing, improving and upgrading laminating products, Vivid Laminating Technologies products deliver the best quality, the highest levels of reliability, and the most efficient ways of laminating.

Vivid Laminating Technologies design and manufacture laminating, finishing and binding systems along with a full range of supplies including laminator film, laminating pouches and binding consumables. The laminating systems products include Peak, Matrix Duo(single and double sided laminating and encapsulation systems), Linea (encapsulation systems), Easymount (wide format laminating and mounting systems), and Matrix ranges. Laminating supplies products are the Boss range. The finishing systems products include Trimfast, Magnum, and Easycoat, Easyguide ranges. The binding systems products includes Magnum range and the binding supplies products are the Imagemaker range.

Vivid Laminating Technologies are ISO 14001 registered, committed to compliance with relevant environmental legalisation and to the adoption to practices and procedures that reduce the risk of environmental damage or harm.
