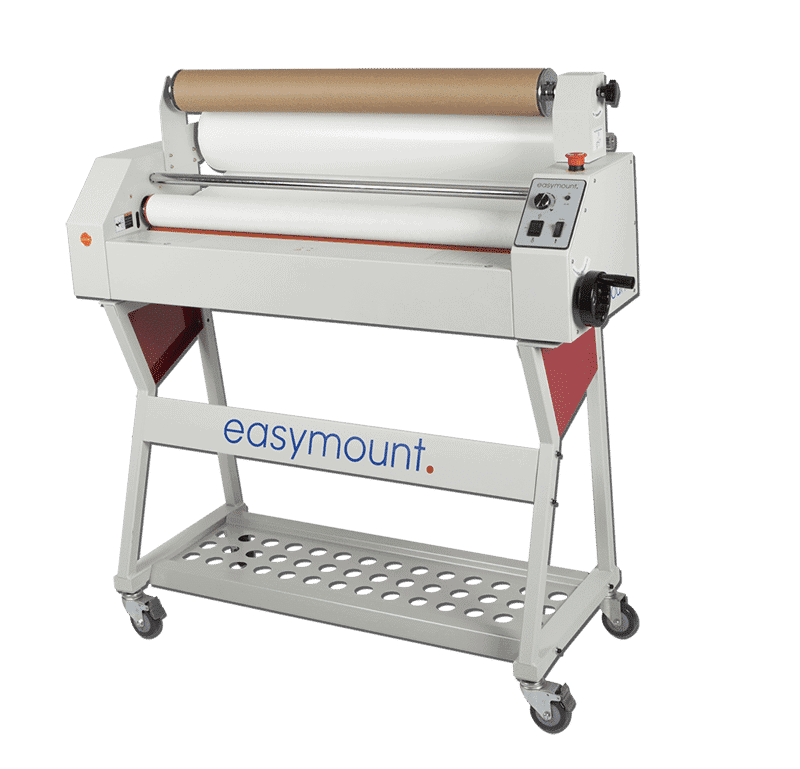

Easymount Sign EM-880 Wide Format Laminating System

Easymount Sign EM-880 Wide Format Laminating System - Image 3

The Easymount Sign EM-880 is a 880mm/34″ cold laminating and mounting system, ideal for heat sensitive materials including vinyls and adhesives. Designed for sign makers and photographers, the Easymount Sign range of wide format laminating systems are entry- level simple solutions for professional, cost effective finishing. The EM-880 laminates, mounts to board up to 15mm/0.5 inch thick, and can apply vinyls, application tapes and adhesive films to wide format prints up to 880mm/34 inch wide.

Description

Easymount wide format laminating systems save money and time by eliminating the need to outsource to print finishers, and keeping control of the job from wide format print to wide format finish. Lamination protects and preserves all kinds of wide format prints from spills, grease, chemicals, rain, fingerprints, abrasions, creases, wrinkles and sunlight. Lamination enhances almost any type of wide format print by deepening and brightening colours and improving contrast.

The Easymount range of laminating systems include the following wide format sizes: 650mm, 880mm, 1200mm, 1400mm, 1600mm, 1650mm, and 2100mm (26, 34, 47, 56, 63, 65 and 83 inches). Easymount wide format laminating systems are available in cold (uses pressure to laminate, good for heat sensitive originals such as vinyls), single hot (uses heat to laminate, single-sided, good for wide format originals that can withstand heat) , and double hot (uses heat to laminate, double-sided good for wide format originals that can withstand heat and require lamination on both sides).

At Design Supply, an authorised Vivid Laminating Technologies reseller, we work closely with manufacturer to provide the best solutions available to get the job done for your business and maximise your opportunities. With over 28 years of experience in the large format market, we offer expertise and knowledge in tailoring the exact solution for your specific application.

VIDEOS

Wide Format Laminators

Wide Format Laminators Overview

KEY FEATURES

Save money by cold laminating and mounting all your wide format prints up to 880mm/34 inches wide, in-house, and eliminate outsourcing to print finishers. The Easymount Sign EM-880 is an easy-to-use laminating system at an entry level price. Designed to perform and built to last, with its solid heavy duty construction, the Easymount Sign EM-880 provides a simple solution for professional, cost effective finishing.

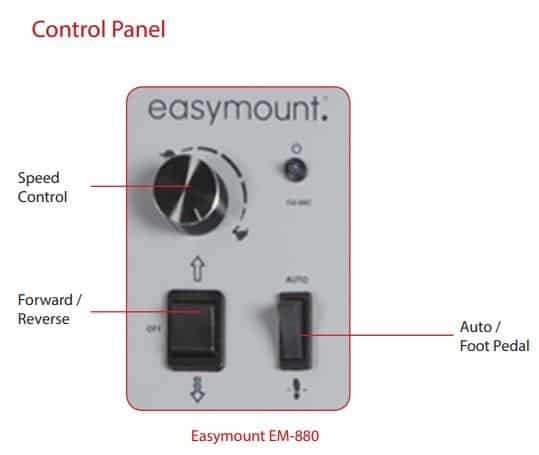

Save time by keeping control of the job, from wide format print to wide format finish. The Easymount EM-880 is versatile and easy-to-use and requires no warm-up time. The EM-880 is a top unwind unit only with an impressive laminating speed of 3m/10ft a minute, the EM-880 accepts up to 15mm/0.59″ mounting thickness. The large rubber roller cores deliver even and precise pressure, and the magic eye safety feature prevents the rollers from moving when interrupted. For controlled operation, a variable speed control and a foot pedal is included, as well as a handy reverse mode and an emergency stop button.

Protect heat sensitive prints at the lamination stage with the Easymount EM-880. Cold rollers apply pressure to laminating film to bond the film to the print. The rollers remain cold, making it ideal for applying vinyls and adhesive films, and application tapes.

SPECIFICATIONS

The Easymount Sign EM-880 wide format laminating system has a laminating speed of up to 3m/10ft per minute and is able to mount to boards up to 15mm/0.6″ thick. The roll diameter is 70mm/5 inches and film core of 77mm/3 inches. The EM-880 has a manual roller pressure control and a manual tension control.

The Easymount Sign EM-880 wide format laminating system handles a full range of cold pressure laminates including matte, gloss, soft touch, sandtex and anti-graffiti. The EM-880 is compatible with Vivid Laminating Technologies own brand, BOSS range of cold laminating films suitable for aqueous and solvent-based inkjet print, as well as fast-curing types such as UV and HP Latex. BOSS media includes mounting films, pressure sensitive laminating films (gloss, ‘crystal’ matte, satin matte, flat matte in 80 and/or 100 micron) 100 micron UV pressure sensitive over laminates (gloss and crystal matte), Sandtex pressure sensitive film and release paper (Sandtex 150 micron, Glitter finish 220 micron) and Anti-Graffiti laminating films (Dry Wipe (UV) and Anti-Graffiti (UV) Outdoor). Our media specialists at Design Supply have the expertise to help you determine the best solutions for your particular laminating and mounting needs.

Count on dependable support to create the best image possible from Vivid Laminating Technologies and Design Supply. For added peace of mind, Easymount Sign EM-880 Wide Format Laminating system features a 1 year warranty. Ask us at Design Supply, and we can tailor the best solution possible for your needs.

Specifications
Laminating Speed (m/min / feet/min)	3 / 10
Max. Width (mm / inches)	880 / 34
Mounting Thickness (mm / inches)	15 / 0.5
Roller Diameter (mm / inches)	70 / 2.75
Warm-up Time (mins)	–
Hot Roller Heater System	–
Laminating Temperature Range (°C/°F)	– / –
Control Panel	LED
Pressure Adjustment	Manual
Film Core (mm / inches)	77 / 3
Power Supply AC (v, 50Hz)	220/240
Rate Input Power	50W
Power Supply Required (Amps)	13
Power Consumption (W)	50
Dimensions – Width (mm / inches)	1100 / 43
Dimensions – Depth x Height (mm / inches)	650×1250 / 26×49
Gross Machine Weight (Kg / lbs)	75 / 165
Warranty	1 Year

WHAT'S IN THE BOX

Easymount Sign EM-880 Laminator

1 year warranty

DATA SHEETS

Easymount EM-880 Wide Format Laminator Data sheet

Easymount Wide Format Laminating Systems Brochure

MANUFACTURER INFORMATION

Vivid Laminating Technologies Ltd, a UK based company, are Europe’s leading designer and manufacturer of laminators. Committed to developing, improving and upgrading laminating products, Vivid Laminating Technologies products deliver the best quality, the highest levels of reliability, and the most efficient ways of laminating.

Vivid Laminating Technologies design and manufacture laminating, finishing and binding systems along with a full range of supplies including laminator film, laminating pouches and binding consumables. The laminating systems products include Peak, Matrix Duo (single and double sided laminating and encapsulation systems), Linea (encapsulation systems), Easymount (wide format laminating and mounting systems), and Matrix ranges. Laminating supplies products are the Boss range. The finishing systems products include Trimfast, Magnum, and Easycoat, Easyguide ranges. The binding systems products includes Magnum range and the binding supplies products are the Imagemaker range.

Vivid Laminating Technologies are ISO 14001 registered, committed to compliance with relevant environmental legalisation and to the adoption to practices and procedures that reduce the risk of environmental damage or harm.
