Vistaplan Front Loading Mobile Trolley Carrier (1380 x 670 x 830mm)
The Vistaplan Front Loading Mobile Trolley Carrier for drawing and plan storage, accomodates 20 drawing hangers with handles of mixed sizes, giving a capacity of up to 1500 sheets, depending on paper weight.
Description
The Vistaplan Front Loading Mobile Trolley Carrier for drawing and plan storage, accomodates 20 drawing hangers with handles of mixed sizes, giving a capacity of up to 1500 sheets, depending on paper weight.
Design Supply, a Vistaplan Accredited Partner, works closely with Vistaplan to provide the best large format storage solutions available to get the job done for your business and maximise your opportunities. With more than 28 years of experience in the large format market, Design Supply offers expertise and knowledge in tailoring the exact solution for your specific application.
VIDEOS
Vistaplan Drawing Hangers
KEY FEATURES
Easily store and access professional drawings, building plans, maps, poster and other large sheets, including CAD plots, wherever you need them with Vistaplan Front Loading Mobile Trolley Carrier. The Vistaplan Front Loading Mobile Trolley Carrier for drawing and plan storage accomodates A1, A0 and CAD A0 Drawing Hangers with handles and can hold a maximum of 20 drawing hangers,and offers a capacity of up to 1500 sheets, depending on paper weight. The unit allows drawing hangers to pivot for easy access and removal.
Vistaplan A1, A0, and CAD A0 Drawing Hangers with handles hold up to 100 sheets, depending on paper weight and thickness. Vistaplan Drawing Hangers with holders will accommodate mixed paper sizes up to and including CAD A0. Lift the drawing hanger out of the trolley, and flick through the sheets like a book without having to open the drawing hanger. When you need to take one out, the clamp opens flat for easy access. Effective clamp design means there is no need for planstrips.
The Vistaplan Front Loading MobileTrolley Carrier is fitted with four swivel castor wheels, making them easy to maneuver and robustly constructed with a five year manufacturing guarantee for piece of mind.
SPECIFICATIONS
Vistaplan Front Loading Mobile Trolley Carriers are available in one size and can accomodate all drawing hanger sizes with handles. Vistaplan Drawing Hangers are available in corresponding three sizes.
| Model | Height | Width | Depth | Capacity (sheets) |
|---|---|---|---|---|
| FLT | 1380mm | 670mm | 830mm | 1500 |
| Hanger Model | Paper Clamping Length | Overall Hanger Length | Capacity (Sheets) |
|---|---|---|---|
| A1 / A1CAD | 650mm | 720mm | 100 |
| A0 | 841mm | 910mm | 100 |
| A0CAD | 925mm | 995mm | 100 |

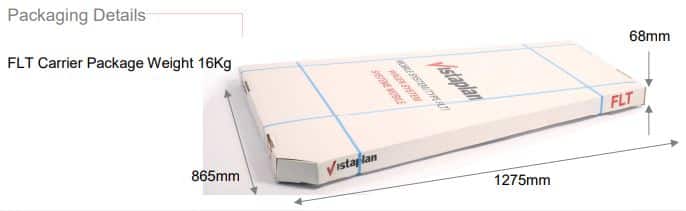

Vistaplan Trolley Carriers are flat-packed for convenient delivery and are designed for hassle free assembly by one or two persons. A hexagonal key and open 14mm spanner are included.
WHAT'S IN THE BOX
Front Loading Mobile Trolley Carrier
5mm hexagonal key
Open 14mm spanner
Optional items:
A1, A0 and CAD Ao Drawing Hangers, with handles
MANUFACTURER INFORMATION
Vistaplan is the UK market leader in manufacturing of drawing office equipment and drawing management systems. Established for over 50 years, Vistaplan product range includes drawing filing systems, plan filing systems, cad filing, map storage, planchests, drawing boards, parallel motions and a wide range of technical office equipment.
Vistaplan products are made to a very high standard, are ISO 9001 accredited, and offer a 5 year guarantee on Drawing Hanger Systems with a no quibble return policy.
