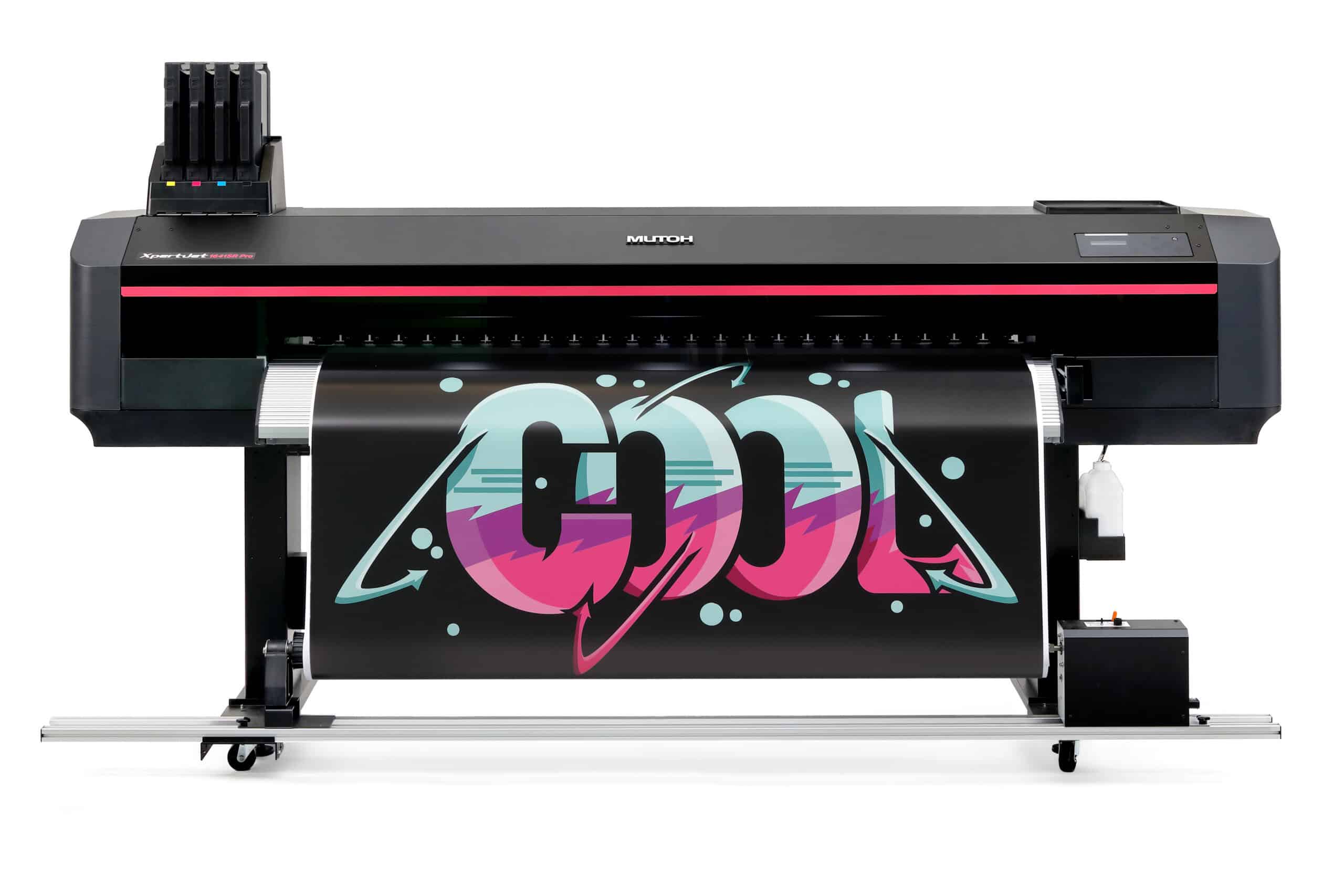

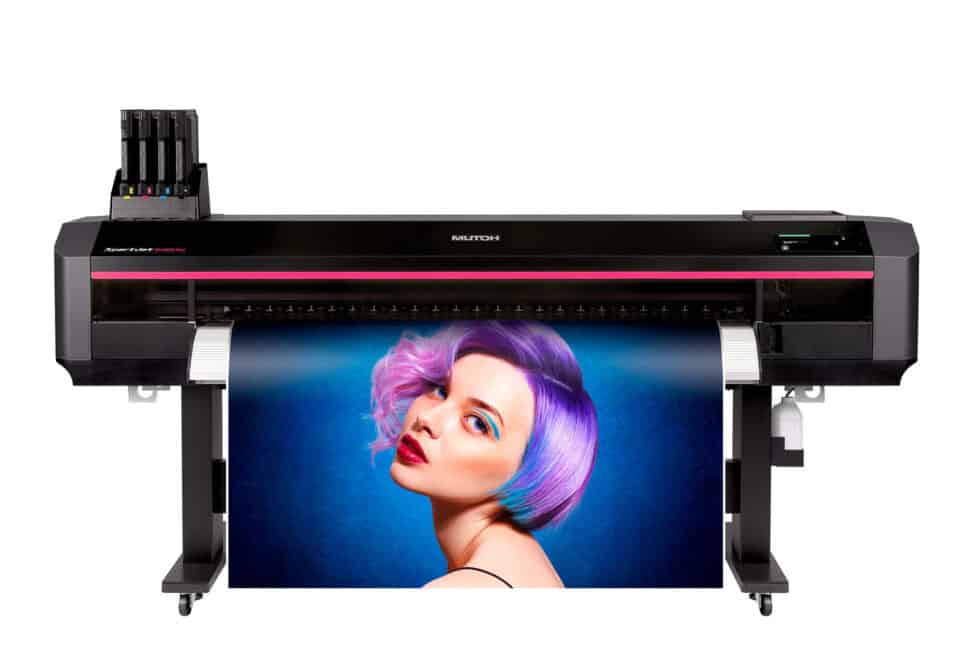

The Mutoh XpertJet 1641SR PRO is a 64″ (1625mm) wide sign and display printer. Delivering robust construction, reliability and high quality wide format printing solution the Mutoh XpertJet 1641 SR PRO is a 4-colour, high-end, high-speed, roll-fed production printer designed for Sign Makers, Print Service Providers and Commercial Printers looking for an unparalleled level of print quality and automation in the Outdoor and Indoor Sign and Display applications.

Mutoh XpertJet Sign & Display printers are specifically designed for high quality volume production of sign and display graphics for long-term outdoor applications as well as durable prints for indoor use. Create durable prints on coated and uncoated substrates, and produce posters, billboards, backlit signage, wall coverings, point-of-sale displays, vehicle graphics, fine art reproduction, stickers and more with the Mutoh XpertJet 1641SR PRO. The Mutoh XpertJet 1641SR PRO delivers best-in-class speed, superior print quality, and automation and is the successor to the award-winning ValueJet VJ-1638X and XpertJet 1641SR. The XpertJet 1641SR PRO features Mutoh AccuFine extra wide piezo print head, i-Screen fourth generation weaving algorithm, VerteLith genuine RIP Software and MS41 Sign & Display Inks with GREENGUARD Gold certification for indoor applications.

Design Supply, a Mutoh Authorised Reseller, works closely with Mutoh to provide the best solutions available to get the job done for your business and maximise your opportunities. With more than 35 years of experience in the large format printer market, Design Supply offers expertise and knowledge in tailoring the exact solution for your specific application.

Description

VIDEOS

Mutoh XpertJet 1641SR PRO Sign and Display Wide Format Printer

KEY FEATURES

The Mutoh XpertJet 1641SR PRO delivers best-in-class speed, superior print quality, and automation and is the successor to the award-winning ValueJet VJ-1638X and XpertJet 1641SR. The XpertJet 1641SR PRO features Mutoh AccuFine extra wide piezo print head, i-Screen fourth generation weaving algorithm, VerteLith genuine RIP Software and MS41 Sign & Display Inks with GREENGUARD Gold certification for indoor applications.

The Mutoh XpertJet 1641SR PRO is ideal for established sign makers who need extra versatility and for larger operations that want to extend their capacity and flexibility. The XPertJet 1641SR PRO delivers best-in-class speed and the highest levels of quality. Featuring Mutoh’s AccuFine extra-wide print piezo print head, the XpertJet 1641SR PRO delivers outstanding drop placement accuracy. Additionally, the XpertJet 1641SR Pro incorporates Mutoh’s i-screen technology, an advanced weaving algorithm that significantly improves gradients. With these sophisticated features, the XpertJet 1641SR Pro is a premium choice for professionals seeking precision, consistency and high quality wide format printing solutions.

The Mutoh MS41 Sign & Display Inks are GREENGUARD GOLD certified, meaning output can be used at full room coverage, even in sensitive environments such as schools and hospitals.

SPECIFICATIONS

The Mutoh XpertJet 1641SR PRO is suited for the production of a wide variety of outdoor and indoor prints and offers a wide range of easily selectable pre-defined print modes and speeds. Intelligent design features make the Mutoh XpertJet 1641SRPRO easy to set up and operate. Ultimate flexibility is achieved with Mutoh’s VSM app for remote printer monitoring through a smart phone.

Mutoh proprietary DropMaster2 technology means constant and uncompromised print quality on any thickness/weight of media used with the XpertJet 1641SR Pro. Whether printing on thin blue back paper to thick pvc banner, DropMaster2 technology, specifically developed for Mutoh’s printers, eliminates the need for cumbersome and time consuming media dependent head adjustments. The Mutoh XpertJet 1641SR PRO has a built-in colour sensor for automatic bidrectional alignment, saving precious time and increasing efficiency.

The Mutoh XpertJet 1641SR PRO is packed with multiple product enhancements to provide ease of use and reliability for many years to come. For worry-free feeding and optimum transport of the widest range of media, including thin, delicate or slippery substate, the XpertJet integrates a Multi-level Pinch Roller system, enabling adaptable pressure on each individual pinch roller. The Enhanced Roll Off System with Media Feed Flanges facilitates easy and convenient single operator media loading. Newly designed Coreless Media Feed Flanges speed up media loading and exchanging of multiple rolls. A LED Touch Display delivers intuitive printer operation, including a colour bar for displaying the printer’s key status. An Illuminated Print Platform provides LED lights for easy inspection and follow up of print jobs in progress. XpertJets are equipped with motorised torque winder. Choose between a 30 kg winder for motorised roll up of media up to 150mm, or a 40 kg winder, suited for media rolls up to 250mm.

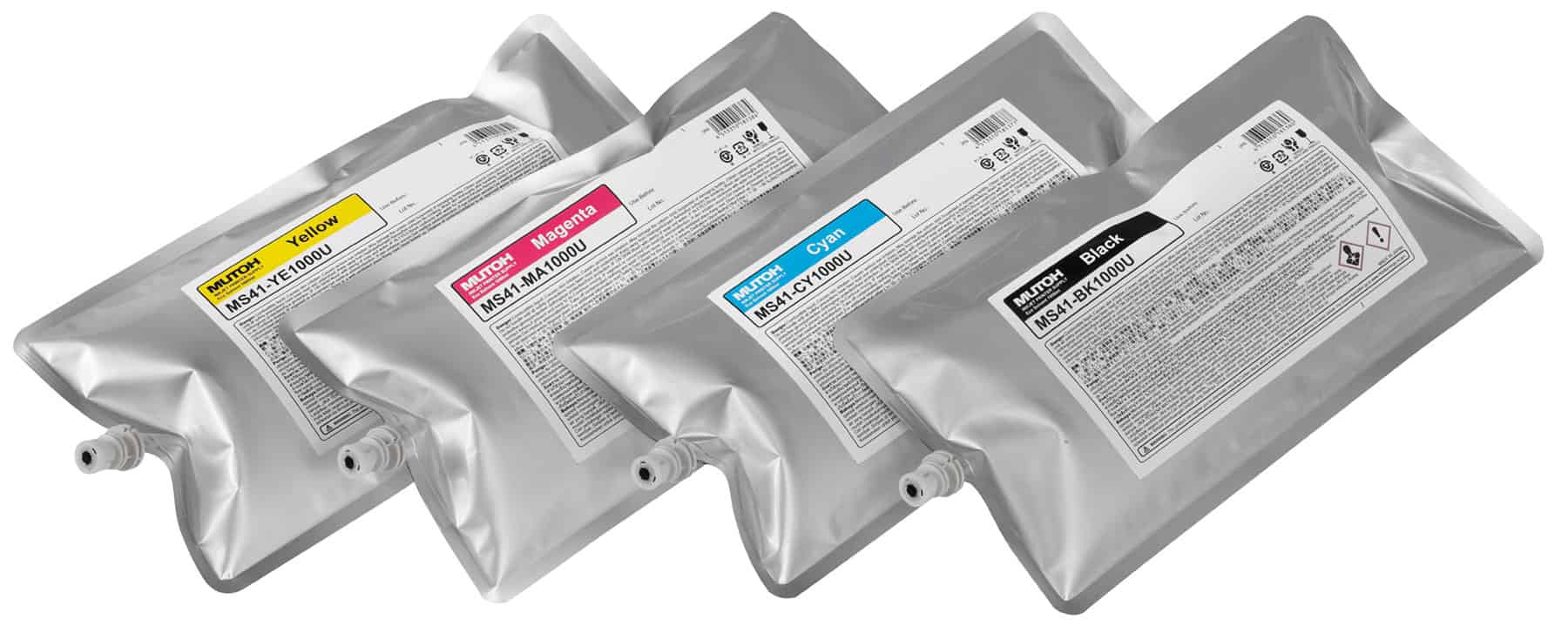

Suitable for both indoor and outdoor graphics using Mutoh MS41 Sign & Display Inks, XpertJet 1641SR PRO prints are UV and water resistant for up to three years outdoors. Mutoh MS41 Sign & Display Inks are available in 300 ml and 1 liter packs and in four colours, including Cyan, Magenta, Yellow, and Black. MS41 will deliver vibrant high density prints with excellent dot gain suited for long term outdoor and interior prints. The ink packs in foil go into re-usable pack cases, reducing waste. LED light indicate ink level status.

With top speeds of up to 41.8m² /h, the Mutoh XpertJet 1641 SR PRO prints on self adhesive PVC at 10.9 m²/hr and on banners/tarps at 15.5 m²/hr.

The Mutoh XpertJet 1641SR PRO is compatible with cost-effective and low maintenance MS41 Sign & Display inks, enabling printing on the widest range of uncoated and coated substrates. There are four ink slots (C,Y,M,K) available on the 1641SR PRO. Output created using MS41 inks are water resistant and offer a UV outdoor resistance of up to three years. For heavy-duty applications where mechanical stress in involved (floor and vehicle graphics), lamination is required. Stabilisation is required prior to lamination. Mutoh’s MS41 inks are available in 300 ml and 1 litre packs in foil, for use in re-usable ink cases included with the XpertJet 1641SR PRO. Mutoh MS41 Inks have Greenguard Gold Certification. As such, the inks meet some of the world’s most stringent and comprehensive standards for low emissions of volatile organic compounds (VOCs) into indoor air. Prints made with MS41 inks are perfectly suited for indoor applications including offices, classrooms and healthcare environments.

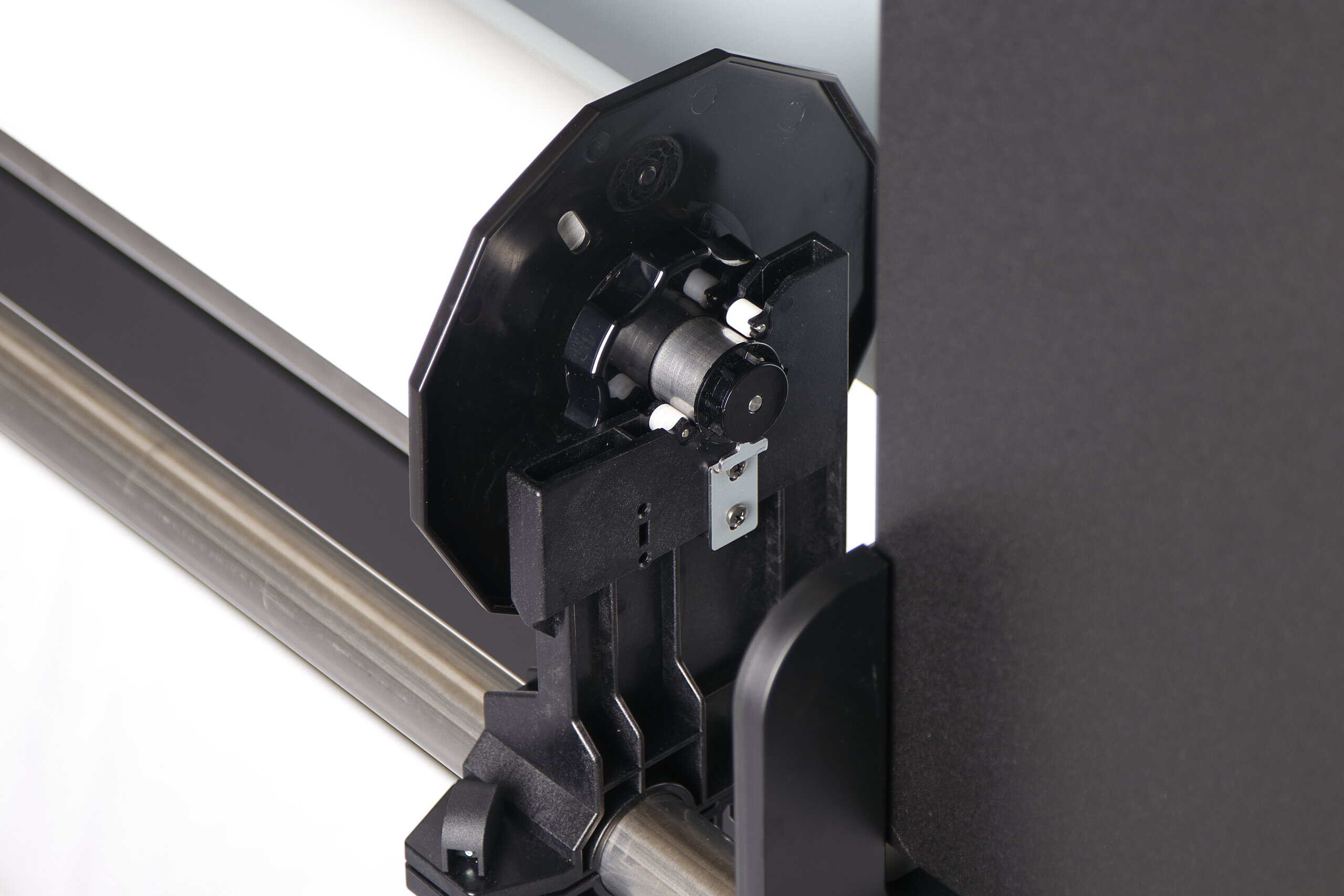

The Mutoh XpertJet 1641SR PRO includes a Motorised Torque Controlled Take-Up System (choose between 30kg up to 150mm, 40kg up to 250mm, or 100kg).

Mutoh VerteLith RIP software optimises performance of the Xpert 1641SR PRO, ideal for intensive graphics applications. Vertelith includes a Mutoh proprietary Clear Tone Screening for better gradients and skin tones, even in 4-colour setup. Extensive features list ideal for any sign and display job.

Optional items for the Mutoh XpertJet 16441SR PRO include the Mutoh multi-purpose ValueCut cutter, which can be run in tandem with the Mutoh XpertJet 1641SR PRO, allowing for simultaneous printing and cutting. The Mutoh ValueCut cutting plotter is able to tackle all contour cutting applications such as stickers, short-run decals, window designs and much more.

Built to last, Mutoh XpertJets and ValueJets are renowned for precision engineering and meticulous production practices for years of profitable use. As you would expect from Mutoh, reliable performance is a given. For added peace of mind, Mutoh XpertJet printers feature a 3 year on-site warranty.

There is a complete range of Mutoh and third party media, compatible with the Mutoh XpertJet 1641SR PRO, available from Design Supply’s media specialists whose expertise can help you determine the best solutions for your particular printing needs.

XpertJet 1641SR PRO – Technical Key Specifications
Print Technology	Drop-on-demand Micro Piezo Inkjet Technology
Print Head	1 AccuFine piezo
Nozzle Configuration
Drop Mass Range (pl)
Variable Head Heights	4 levels: 1.5 mm, 2.0 mm, 2.5 mm 4.0 mm
XPertJet 1641SR PRO – Media Specifications
Max. Media Width	up to 1625 mm (64”)
Max. Print Width	1615 mm (63.58”)
Max. Media Thickness	0.3 /0.8/1.3 / 2.8 mm

Media Measurements *	Ø 150 mm / 2” & 3” / 30 kg
* : Standard non-motorised roll-off system

XpertJet 1641SR PRO – Performance
Top Speed, 4 colour	41.8 m²/h
on Self Adhesive PVC, 4 colour	10.9 m²/h
on Banners/Tarps, 4 colour	15.5 m²/h



XpertJet 1641SR PRO – Ink Specifications
Ink Type	MS41 Sign & Display Inks (C,M,Y,K)
Ink Volume	300 ml and 1 litre packs in foil, for use in re-usable ink cases

Ink Colours	CMYK
Low Chemical Emissions Certification	GREENGUARD Gold, Wallpaper category

UV durability—without lamination	3 years outdoor *
* : For heavy duty applications where mechanical stress is involved, lamination is required. Stabilisation is required prior to lamination.









Width x Depth x Height	2770 x 895 x 1428 mm
Weight	173 kg

WHAT'S IN THE BOX

Mutoh XpertJet 1641SR PRO printer with stand and integrated roll holders

Take-up System (30 kg, 40 kg, or 100 kg motorised torque winder)

Mutoh VerteLith RIP Software

Machine starter kit (cleaning liquid, pack of swabs, box of pipettes, cleaning handbook)

Accessory bag (10 cleaning sticks, forceps, 5 flushing box sponge, 5 paper towels, waste fluid tank, tray, operation manual cd, installation manual, introduction of Windows Printer Driver)

UK power cable

3 year warranty

Options:

Mutoh ValueCut cutting plotters 600(24″), 1300(52″) and 1800(72″)

Consumables:

MS41 Sign & Display Inks 1 litre ink packs: XJ- MS41 (BK , CY , MA , YE ) Black, Cyan, Magenta, Yellow

MS41 Sign & Display Inks 300 ml ink packs: XJ- MS41 (BK , CY , MA , YE ) Black, Cyan, Magenta, Yellow

DATA SHEETS

Mutoh Xpert 1641SR PRO Datasheet

Mutoh MS41 Sign & Display Inks Datasheet

Mutoh ValueCut Series Cutting Plotters: (600, 1300, 1800) Data Sheet

Mutoh ValueCut 600, 1300 and 1800 Specifications

Mutoh ColorVerify Data Sheet

MANUFACTURER INFORMATION

Mutoh has been at the forefront of the wide format industry for more than 20 years. As an innovative developer and manufacturer of wide-format printers and cutters, Mutoh incorporates pioneering technology to bring you the best equipment for your application. Manufactured in Japan, Mutoh XpertJet printers feature best-in-class inkjet head technology, latest generation electronics and high quality inks. Mutoh also has a complete range of ValueJet printers.

Mutoh’s AccuFine extra wide piezo print head featured in the XpertJet 1641SR PRO is 33% wider and contains 11% more nozzles, increasing optical resolution, best-in-class dot placement accuracy and improved nozzle stability and dot quality. Mutoh’s previous staggered dual head setup, and electronics offers a unique blend of high speed and high quality. The wide piezo print head features 8-channel drop-on-demand inkjet technology. Each 1440 nozzle head includes four colour sections (C, M, Y, K) each divided in two nozzle rows with 360 nozzles per colour. All four colour sections are in one head, eliminating the need for head to head calibration. The integrated print heads are capable of producing ink drops ranging from 3.5 picoliters to 35 picoliters, resulting in incredible accuracy, sharpness, and speed. Increased accuracy and consistency of dot size and dot release during printing improves the image, in addition to increased dot gain control, allowing for more latitude in profile settings. New generation electronics include higher carriage speeds and ink firing frequencies and adapted weaving algorithms give an impressive increase in productions speed as well as optimised ink spread and improved drying. High-end piezo print heads have been specially tuned for Mutoh’s genuine sign and display inks. The XpertJet 1641SR has a single head setup, and the XpertJet 1682SR has a dual head on board.

Mutoh’s i-screen technology is built on Intelligent Interweaving, as a fourth generation weaving alogrithm producing overall higher print quality and banding free output over a wider speed range.

Mutoh’s award-winning Intelligent Interweaving print technology drastically reduces or totally eliminates the typical difficulties inherent to conventional digital inkjet printing, including defects such as horizontal banding, ink mottle, bleed and the visible effects of missing or misfiring nozzles. Ink is laid down in waves, as opposed to straight lines used on most wide format printers. The biggest benefit of this proprietary Mutoh print technology is that it offers predictable and repeatable output quality, bringing an unprecedented level of user comfort to the printer operator. Dedicated weave algorithms for XpertJets effortlessly deliver spot on print quality.

DropMaster technology is a Mutoh proprietary feature which eliminates the need for media dependent head adjustments. DropMaster is a revolutionary print automation technique specifically designed for Mutoh’s dual head ValueJet models. DropMaster automatically calculates and adjusts the uni/bi-directional fire timings by analysing the media thickness and drop-throw distance between print head and media surface. With XpertJet, Dropmaster has been taken to the next level: DropMaster2. DropMaster2 works with the built-in XpertJet colour sensor for automatic bidirectional alignment, saving time and increasing efficiency.

Mutoh’s VerteLith genuine RIP software optimises the performance of the XpertJet 1641 SR PRO. It included Mutoh proprietary Clear Tone Screening for better gradients and skin tones, even in 4-colour setup. It also has an extensive features list to tackle any sign & display job.

Mutoh MS41 Inks are Mutoh’s 4th generation of eco inks. The MS41 inks have been specifically developed for the piezo drop-on-demand head technology integrated in Mutoh’s XpertJet Sign & Display printers. MS41 Inks consist of highly durable colour pigments ground to nano-size level, a new blend of milder and non-aggressive solvents and a new mix of resins. The resin mix enables optimum adhesion of the pigments to the substrate and creates a uniform and smooth ink layer. Each individual colour pigment is coated by the resin mix to address the typical requirements of outdoor sign and display prints (gloss preservation, scuff, abrasion and chemical resistance) and to safeguard long-term outdoor durability of the colour pigments. Mutoh MS41 Inks have an excellent weather, abrasion and chemical resistance. UV durability without lamination is rated up to 3 years outdoor.

Mutoh’s MS41 Inks have obtained GREENGUARD Gold Certification in the wallpaper category, which means MS41 Inks meet some of the world’s most stringent and comprehensive standards for low emissions of volatile organic compounds (VOCs) into indoor air. Prints made with MS41 Inks are perfectly suited for indoor applications including offices, classrooms, and healthcare environments.
