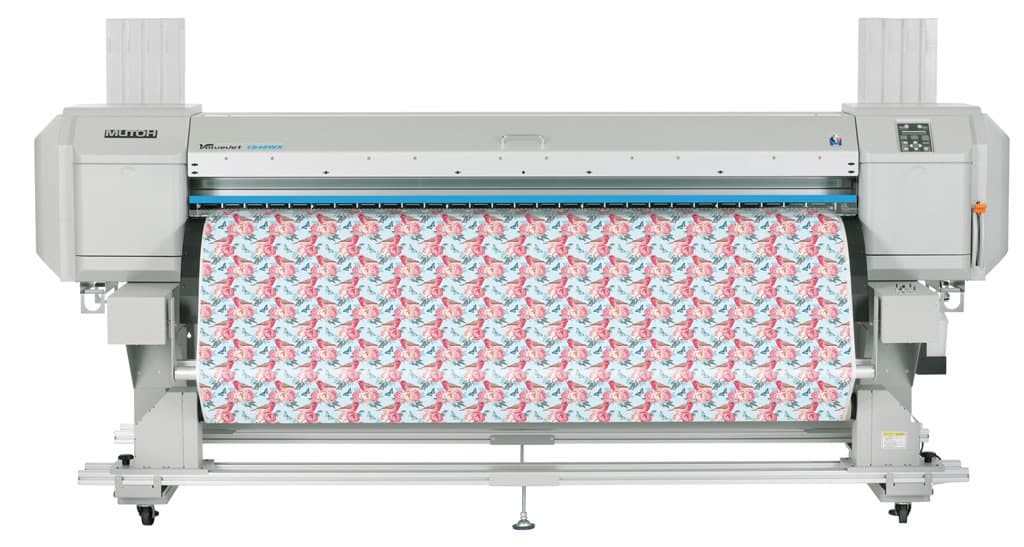

Mutoh ValueJet VJ-1948WX (75 inch) Indoor and Digital Transfer Large Format Printer

SPECIFICATIONS

Stunning performance from the ValueJet VJ-1948WX makes it ideal for both speed production and top quality print work. The ValueJet VJ-1948WX offers a wide range of easily selectable pre-defined print modes and speeds.

The Mutoh ValueJet VJ-1948WX includes easy to configure pressure rollers with an integrated disable function. The individual head cleaning facility minimises waste and the water-based dye sublimation inks print environmentally friendly output and include a high level of operator safety.

The Mutoh ValueJet VJ-1948WX works with Mutoh’s new DS2-Series Dye Sublimation Inks. Developed specifically for the ValueJet VJ-1948WX print heads, Mutoh’s DS2-Series inks produce excellent nozzle stability for high speed and high volume printing, delivering superior image sharpness and definition. The DS2-Series inks can be used for transfer printing or direct printing onto fabrics such as polyester or mixed fibres. Mutoh’s new water-based dye sublimation inks are odourless, during both the printing and the transfer process and produce rich, vibrant colours and offer excellent colourfastness.

For transfer printing, Mutoh DS2-Series inks are optimised for use in combination with dedicated coated sublimation papers of different weights. In addition to transfer to synthetic fibres, they can also be sued for transfer onto pre-treated rigid substrates (e.g. mugs, plates, magnetic vinyls, wood, place mats, ChromaLuxe plates, tiles, mirrors, acrylic glass, metal, nylon, lighters, pens, CD’s and more). Direct printing on to fabric requires drying and fixation process equipment, a calendar or a heat press.

Using Mutoh’s water-based dye sublimation inks and easily available uncoated recyclable polyester-based materials means there is no need for forced ventilation, as the inks are free from VOCs and hazardous components. Average ink consumption is less than 5ml/m² at 720dpi with 67% coverage. The prints are also odourless. Soft signage is much easier to pack and ship which reduces transport costs, as it fold easily to reduce space and extremely lightweight. Soft signage can be washed, if necessary and re-used without fading. Mutoh water-based dye sublimation inks feature UV durability of 3 to 6 months outdoor. Mutoh’s Water-based dye sublimation inks are available in 1000ml bulk bottles, and will enable you to lower your cost per copy. Paper prints are produced faster, which increases your productivity. Readily available low cost polyester fabrics (uncoated) means you can offer higher end luxurious products with premium appearance, touch and feel, which can be sold at a higher price compared to regular vinyl, paper and banner prints.

Mutoh DS2-Series Dye Sublimation Inks deliver top scores in washing, perspiration, and light fastness properties, including UV durability. DS2 inks are Oeko-Tex compliant. After printing with DS2-Series inks onto transfer paper or polyester fabrics, a sublimation follow-up treatment (transfer) is required, through high pressure and temperature (calender), to fix the colours. When printing directly onto polyester fabrics with this ink type and after sublimation, the fabric needs to be washed before use, to remove the brownish dispersant and to fully release the vibrant colours typical for sublimation inks. Average ink consumption is 8.5 ml/m².

The ValueJet VJ-1948WX comes with a set of pre-mounted and repositionable scroller supports at the back for easy single operator roll loading. These will enable non-motorised roll off of rolls up to a weight of 30kg.

Optional items for the Mutoh ValueJet VJ-1948WX include the Mutoh SpectroVue VM-10 Spectrophotometer, Motorised Torque Controlled Take-Up System, the Mutoh ValueCut, the Onyx 12 RIPCenter ValuePlus Mutoh Edition RIP and the SAi FlexiPRINT SE12 Mutoh Edition RIP software. The Mutoh SpectroVue VM-10 spectrophotometer directly attaches to the print head carriage or shuttle of the VJ-1924W printer, enabling the monitoring of colour drift over time, from job-to-job or even within a large job. The VM-10 can also be used to build ICC colour profiles and linearization files, in combination with supporting software. The VM-10 allows fast, simple and accurate colour measuring and process control to your workflow, producing consistent colour prints every time with the on-board ColorVerify system. The Mutoh multi-purpose ValueCut cutter can be run in tandem with the Mutoh ValueJet VJ-1948WX, allowing for simultaneous printing and cutting. The Mutoh ValueCut cutting plotter is able to tackle all contour cutting applications such as stickers, short-run decals, window designs and much more. For intensive graphics applications, dedicated RIP software is recommended. SAi FlexiPRINT SE12 Mutoh Edition RIP software for single workstation environments and Onyx 12 RIPCenter ValuePlus Mutoh Edition RIP solutions make it easy to prepare jobs and create sellable prints faster. Both RIP solutions include a fully integrated print and cut workflow.

Built to last, Mutoh ValueJets are renowned for precision engineering and meticulous production practices for years of profitable use. As you would expect from Mutoh, reliable performance is a given. For added peace of mind, Mutoh ValueJet printers feature a 12-month on-site warranty.

There is a complete range of Mutoh and third party media, compatible with the ValueJet VJ-1948WX available from Design Supply’s media specialists whose expertise can help you determine the best solutions for your particular printing needs.
