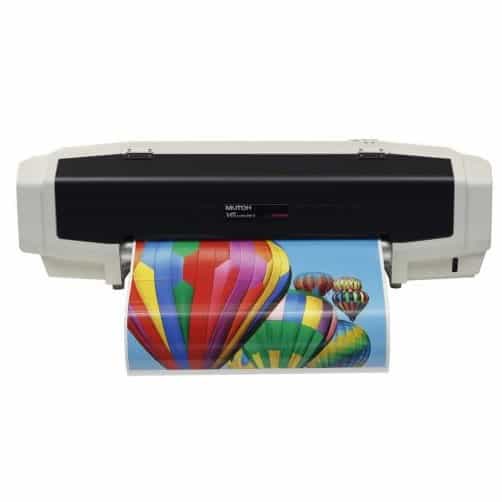

Mutoh ValueJet VJ-628 Desktop (610mm/24in) A1 Sign & Display Large Format Printer
The Mutoh ValueJet 628 is Mutoh’s smallest 4-colour, eco-solvent sign and display printer offering great potential for startup businesses, small sign makers, retail and quick print providers.
Description
The Mutoh ValueJet VJ-628 is Mutoh’s smallest 4-colour, eco-solvent sign and display A1 printer offering great potential for startup businesses, small sign makers, retail and quick print providers.
Offering a media width of 630mm (24″), the compact, user-friendly and cost effective ValueJet VJ-628 has been developed for a wide array of applications ranging from in-store printing, commercial print, signage and print-to-cut jobs.
Mutoh’s smallest sign & display printer offers a great potential to startup businesses, small sign makers, department stores and quick print providers.
The ValueJet VJ-628 printer, ideal for small-lot on demand production, is suited for a wide variety of outdoor and indoor prints : long-term outdoor posters, stickers & labels, signs and banners, apparel decoration, backlit signage, POS displays, vehicle & window graphics, photo prints, fine art reproduction, etc.
Design Supply, a Mutoh Authorised Reseller, works closely with Mutoh to provide the best solutions available to get the job done for your business and maximise your opportunities.
VIDEOS
Mutoh ValueJet VJ-628
Mutoh ValueCut 600
KEY FEATURES
Designed for small, on-demand production, the Mutoh ValueJet VJ-628 is suited to a variety of indoor and outdoor applications: long-term outdoor posters, stickers and labels, signs and banners, apparel decoration, backlit signage, POS displays, vehicle and window graphics, photo prints, fine art reproduction. Mutoh’s innovative i² Intelligent Interweaving printing technology produces impeccable prints every time.
Equipped with the latest generation micro piezo print head, this 8-channel desktop printer delivers high quality prints for indoor and outdoor applications. As well as easy set up and use, even by inexperienced operators, intelligent VJ-628 design features include a multi-functional 2-key keyboard, printer installer and Windows driver, auto cutting function, left and right media retainers and front media guides, and i² print technology which delivers predictable output quality.
The Mutoh ValueJet VJ-628 utilises Mutoh Eco Ultra inks, making it suitable for installation in any working environment. The Mutoh ValueJet VJ-628 using Eco-Ultra inks is ideally suited to deliver top quality images when printing directly onto a wide range of low-cost standard available uncoated PVC, banner and soft-sign materials as well as for coated substrates.
Rapid return on investment is available to beginners as well as skilled operators. The combination of affordable pricing, ease of use with consistent high quality output, minimal periodic maintenance required, flexibility for switching quickly between print jobs and low ink consumption (ave 8mil/sqm on uncoated PVC) means the Mutoh ValueJet VJ-628 will swiftly turn investment in to profit.
SPECIFICATIONS
A revolutionary variable drop piezo print head is at the heart of the Mutoh ValueJet VJ-628’s stunning performance. The ValueJet VJ-628 offers you a wide range of print modes and speeds:
- Quality – 720 x 720dpi: 4.6sqm/h
- Production – 720 x 720dpi: 9.0sqm/h
- Speed Production – 720 x 720dpi: 12.5sqm/h
This 1440-nozzle head comprises four colour sections. Each colour section has 360 nozzles, or two 180 nozzle rows per colour. Because all colour sections are in one head, there is no need for time-consuming head to head calibration routines. Drop size is from 3.5 picoliters to 35.2 picoliters.

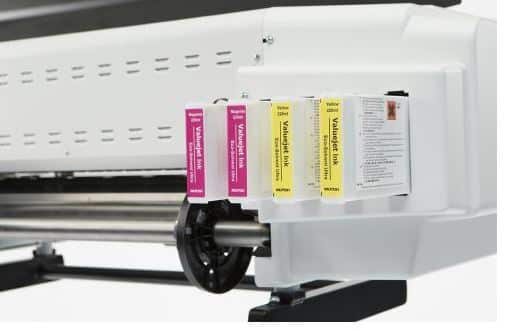

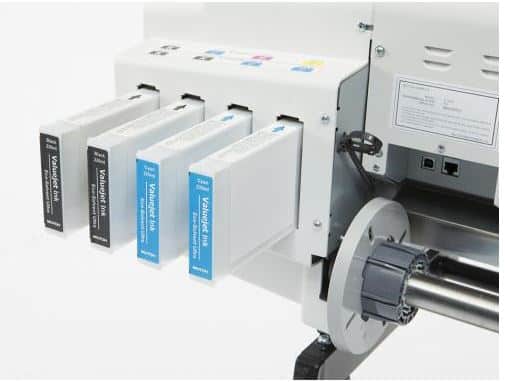

Mutoh Eco Ultra Inks are by far the most popular inks on the market for outdoor sign applications on a wide range of uncoated and coated substrates. The inks are based on non-aggressive solvents and do not spread any harmful VOCs in the working environment. Available in easy-to-use cassettes and litre bags, Eco Ultra inks are Mutoh’s third generation of eco inks featuring improved ink fixation, better drying, higher print speeds and improved scratch resistance. Prints made with Eco Ultra inks are water resistant and offer an outdoor UV-resistance for up to three years outdoors. Ink Consumption is 8ml/sqm @720dpi with 67% coverage UV Durability 3 years outdoor without lamination.
The Mutoh ValueJet VJ-628 comes as a desktop printer with integrated roll holders for media up to 9kg. The ValueJet VJ-628 handles both 2″ and 3″ core rolls. The printer incorporates three heater zones. The heating elements will pre-heat the media, fix the ink and dry the output.
The printer comes as a desktop printer with integrated roll holders for media up to 9kg. The Mutoh ValueJet VJ-628 includes Onyx Launcher Mutoh Edition RIP software (RIP Queue) which provides the control and simplicity needed to get started in print production and achieve consistent high quality output. Built on the latest Onyx 11.1 software platform, Onyx Launcher Mutoh Edition RIP software makes it easy to prepare jobs and create sellable prints faster.

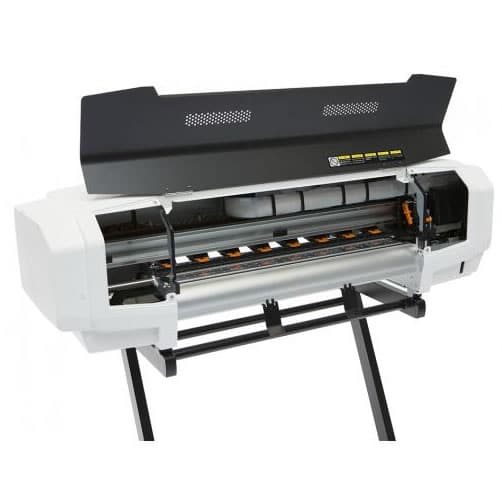

Optional items for the Mutoh ValueJet VJ-628 include a stand, cutters and take up systems. Print and cut simultaneously by running your printer in tandem with a Mutoh multi-purpose ValueCut cutter. The user-friendly ValueCut cutting plotter is ready to tackle all your contour cutting applications such as stickers, short-run decals, window signs and more.
| Specifications |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption During Printing 830W Power Supply AC 100-120V/AC 200-240 – 60/50 Hz Rec Working Environment Temperature 20°C – 32°C with max 2°C/h Humidity 40% to 60% (no condensation) with RH: max 5% RH/h Dimensions/Weight Width x Depth
WHAT'S IN THE BOX
Mutoh ValueJet VJ-628 Printer
Onyx launcher Mutoh Edition
Starter Kit ( 8 x 220ml Eco Ultra inks, 8 x cleaning cassettes)
Printer installer & driver software Win XP, Vista, 7, 8, 8.1
2″/3″ compatible media scroller
Options:
Mutoh ValueJet VJ-628 Stand
Mutoh ValueJet VJ-628 10kg Take Up System
DATA SHEETS
Mutoh ValueJet VJ-628 Data Sheet
Mutoh Print Inspiration Brochure
Mutoh Edition Onyx12 RIP Center ValuePlus RIP Software Data Sheet
Mutoh ValueCut Series Cutting Plotters: (600, 1300, 1800) Data Sheet
Mutoh ValueCut 600, 1300 and 1800 Specifications
Mutoh ValueJet and ValueCut Series Brochure (June 2013)
Mutoh Motorised Torque Controlled Take Up Systems Data Sheet
Mutoh Optional Take Up Systems for ValueJet Series Data Sheet
Mutoh Eco Solvent Inks Specifications
Mutoh Eco Solvent Ultra Inks Data Sheet
MANUFACTURER INFORMATION
Mutoh has been at the forefront of the wide format industry for more than 20 years. As an innovative developer and manufacturer of wide-format printers and cutters, Mutoh incorporates pioneering technology to bring you the best equipment for your application. Manufactured in Japan, Mutoh ValueJet printers feature best-in-class inkjet head technology, latest generation electronics and high quality inks.
Mutoh’s new wide piezo print head and new generation electronics offers a unique blend of high speed and high quality. The drop-on-demand Micro Piezo Inkjet Technology features a single print head with 1440 nozzles divided into four colour sections. Each colour section has 360 nozzles, or two 180 nozzle rows per colour. Because all colour sections are united in one head, there is no need for time-consuming head-to-head calibration routines. The integrated print head is capable of producing ink drops ranging from 3.9 picoliters to 26.9 picoliters, resulting in incredible accuracy, sharpness, and speed. Increased accuracy and consistency of dot size and dot release during printing improves the image, in addition to increased dot gain control, allowing for more latitude in profile settings. New generation electronics include higher carriage speeds and ink firing frequencies and adapted weaving algorithms give an impressive increase in productions speed as well as optimised ink spread and improved drying.
Mutoh’s award-winning Intelligent Interweaving print technology drastically reduces or totally eliminates the typical difficulties inherent to conventional digital UV inkjet printing. Dedicated Intelligent Interweaving print effects for the Mutoh LED UV inks have been engineered, ensuring a drastic reduction of the curing structure in the ink layer and gloss banding suppression. The biggest benefit of this proprietary Mutoh print technology is that it offers predictable and repeatable output quality, bringing an unprecedented level of user comfort to the printer operator.
DropMaster technology is a revolutionary print automation technique which eliminates the need for media dependent head adjustments. Specifically designed for Mutoh’s dual head ValueJet models, DropMaster automatically calculates and adjusts the uni/bi-directional fire timings by analysing the media thickness and drop-throw distance between print head and media surface.
