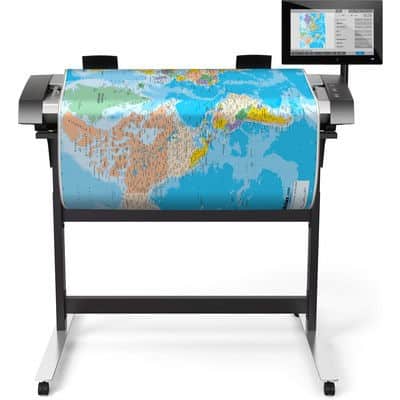

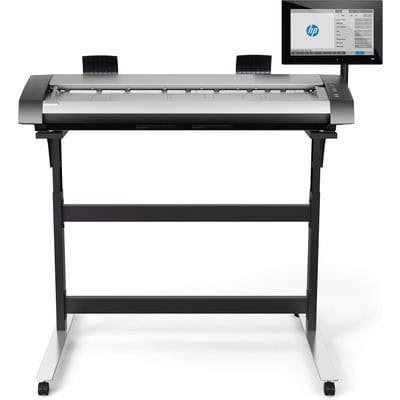

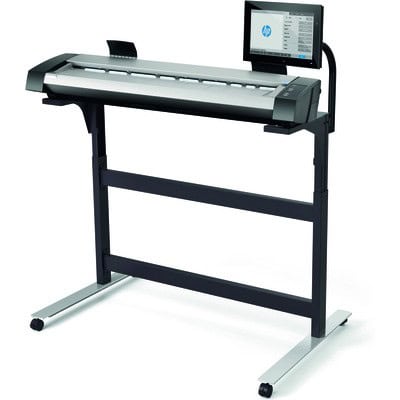

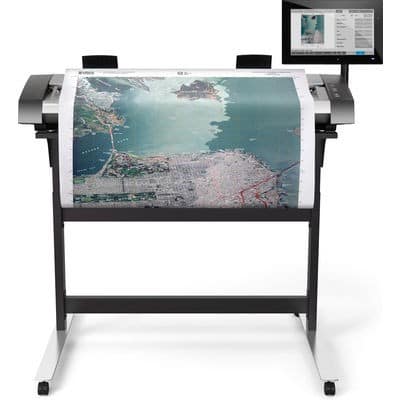

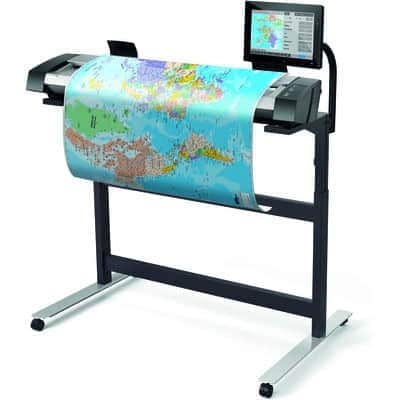

HP HD Pro 42-in Large Format Scanner

HP HD Pro 42-in Large Format Scanner - Image 3

HP HD Pro 42-in Large Format Scanner - Image 4

HP HD Pro 42-in Large Format Scanner - Image 5

Description

The HP HD Pro 42-in Scanner is ideal for the reproducing digital fine arts, graphic design, line drawings, maps, orthophotos, photos, renderings and presentations with crisp lines and fine detail using CCD scanning technology.

Whether an Architect, Engineer, GIS professional, Archivist, Administrator, you can scan engineering drawings, blueprints, architectural renderings, maps, site plans and much more, with the HP HD Pro 42-in Scanner and achieve excellent image quality and productivity. No need to send out for scans, as they can be done in house, quickly, and at your own convenience.

At Design Supply, a DesignJet Specialist and HP Gold Partner, we work closely with HP to provide the best solutions available to get the job done for your business and maximise your opportunities. With over 30 years of experience in the large format printer and scanner market, we offer expertise and knowledge in tailoring the exact solution for your specific application.

VIDEOS

KEY FEATURES

The HP HD Pro 42-in Scanner is designed to reproduce everything from technical documents to graphics, even damaged originals with CCD scanning technology. Create large-format colour and monochrome scans/copies up to 42 inches (1067 mm) wide, even on thick media up to 0.5 inches (15mm). The HP HD Pro 42-in Scanner produces incredibly accurate and high-quality scans with 1200 dpi optical resolution.

The HP HD Pro 42-in Scanner scans images fast at the optimum resolution required to capture the original image detail without compromising quality. Accomplish more with incredible speeds of 6 inches/sec in colour, 13 inches/sec in monochrome for A1 images at 200 dpi, 24-bit RGB. Experience an uninterrupted workflow with the advanced 15.6 inch (396 mm) large touchscreen controller that enables ultra-fast processing featuring a 500GB hard disk, 4GB memory and an Intel Core i7 processor. Save time operating and managing your scanner with an intuitive user interface that requires fewer clicks to final scan. Be more productive with improved compression options, unlimited pre-sets, multi-page PDFs and collating. Easily share and collaborate by scanning to email, USB, network folders, HDDs and HP SmartStream software, a professional software solution that supports HP DesignJet Production printers and HP PageWide XL printers.

The HP HD Pro 42-in Scanner provides seamless integration with HP DesignJet and HP PageWide XL printers. Optimise your workflow with the large touchscreen to preview, enhance images and post-scan editing with HP SmartStream software, avoiding reprints and consumption of inks and media. Secure your workflow by setting up a password to scan to USB and access advanced settings. Build a multifunction system with the HP HD Pro 42-in Scanner which can be placed above most HP DesignJet printers, saving space with the adjustable stand and easily control output destinations.

SPECIFICATIONS

The HP HD Pro 42-in Scanner features an optical resolution of 1200 dpi and an enhanced resolution of 9600 dpi. The HP HD Pro 42-in Scanner scans colour in 15 cm/sec (6 in/sec) and grayscale as 33 cm/sec (13 in/sec). The HP HD Pro 42-in Scanner scans up to 42 inches/1067 mm and a media thickness of up to 15 mm/0.6 in. The maximum scan sizes are 0 .91 x 26 m (36 x 1204 in), 0.6 x 37.9 m (24 x 1491 in), and 0.3 x 75.8 m (12 x 2991 in). The HP HD Pro 42-in Scanner can accept a media width of up to 44 inches (1118mm) and a media thickness of up to 0.6 inch (15mm).

The HP HD Pro 42-in Scanner supports PDF, TIFF, JPEG, JPEG 2000, DWF, CALS (B&W), and multi-page PDF generation. The HP HD Pro 42-in Scanner features a straight-through scan paper path for sheet and cardboard originals and an adjustable paper pressure for very thin media. Documents are fed face-down, front entry and rear exit. HP document return guides allow for rewind, front-return. The HP HD Pro 42-in Scanner features an automatic height adjustment of its scanner bridge for thick originals.

The HP HD Pro 42-in Scanner accepts non-abrasive paper, vellum, Mylar, sepia, blueprints, plastic, film, plastic laminate, foam board, cardboard, newspaper, and tracing paper including varying condition documents including old, delicate, folded, creased, crumpled and damaged originals. The HP HD Pro-42 in Scanner has a 500GB hard disk, 4GB memory and features an Intel Core i7 processor. Windows print drivers are included for compatibility with HP DesignJet and HP Page Wide XL printers.

Optional accessories for the HP HD Pro 42-in Scanner include a large format printer and service and support. The HP HD Pro 42-in Scanner can be placed above the following HP DesignJet Printers:500/510/T520/T610/T620/T790/T795/T1100/T1200/T1300/T1500/T7100/Z6100/Z2100/Z3100/Z3200/Z5200/Z5400 PS/Z6200/Z6800/T7200/Z6600.

As you would expect from HP, reliable performance is a given. For added peace of mind, the HP HD Pro 42-in Scanner features a 1 year limited hardware warranty. Count on dependable support to create the best image possible from HP and Design Supply. Ask us at Design Supply, and we can tailor the best solution possible for your needs.

WHAT'S IN THE BOX

HP SD Pro 42-in Scanner: G6H51B

Stand

Touchscreen (panel PC)

Quick reference guide

Media guides

Setup poster

Copy/scan software

Documentation software

Ethernet cables (2)

Power cords

One-year limited hardware warranty. Warranty and support options vary by product, country and local legal requirements.

Supported Printers:

HP DesignJet Z6800, Z6600, Z6200, Z6100, Z5400, Z5200, Z3200, Z3100, Z2100 Printers

HP DesignJet T7200, T7100 Printers

HP DesignJet T3500, T2530, T2500, T2300, T830 MPF Printers

HP DesignJet T1530, T1500, T1300, T1200, T1120, T1100, T930, T920, T795, T790, T770, T730, TT610/T620, T520 Printers

HP DesignJet 5500, 5100, 4500/4520, 4000/4020, 1050C/1055CM, 510, 500 Printers

HP PageWide XL 8000, 8000 Blueprinter, 5000, 5000 Blueprinter, 4000/4500 Printers

Service and Support:

HP Preventive Maintenance Service: U1XV4E

HP 1 year Post Warranty Onsite Support with Defective Media Retention: U4PS7PE

HP 2 year Post Warranty Onsite Support with Defective Media Retention: U4PS8PE

HP 3 year Next Business Day Onsite Support with Defective Media Retention:U4PS5E

HP 5 year Next Business Day Onsite Support with Defective Media Retention:U4PS6E

DATA SHEETS

HP HD Pro 42-in Large Format Scanner Data Sheet

MANUFACTURER INFORMATION

For over thirty years, HP has been transforming the way design professionals in Architecture, Engineering, Construction, Geospatial and Graphics markets operate. In the late 1970’s, HP developed the first pen plotter and HP-GL graphics language, now the industry standard. In the early 1990’s, HP invented inkjet technology and applied it to DesignJet printers, making large format printing in black-and-white easy, fast and affordable. HP continued to innovate, and introduced colour, faster printing speeds, and the ability to print high resolution images and complex files in large format in the same decade. In the new millennium, faster printing speeds and sunlight-resistant UV inks were introduced, allowing Print Service Providers and Graphics Designers to create applications for both indoor and outdoor use. Photographers began to adopt HP large format printing to replace silver halide, demonstrating HP’s ability to deliver superior image quality with prints lasting up to 200 years. In 2010, with the rise of mobility and globalisation, HP launched its first generation of ePrinters with web-connectivity features and the first multifunction large format ePrinters with copying, scanning and printing in a single device. HP have shipped over 3 million DesignJet printers around the world and are the leader in the market with the widest range of large format printers for design professionals, whether single or multi-user environments.

HP products are part of the HP Eco Solutions programme, aimed at energy usage, carbon footprint, recycling and environmental considerations. HP products meet strict energy efficiency guidelines without sacrificing performance or your productivity. HP Scanners are ENERGY STAR qualified and EPEAT Bronze registered, to help you keep your energy costs down. ENERGY STAR is a joint program of the U.S. Environmental Protection Agency (EPA) and the U.S. Department of Energy. HP also aims to make it easy for you to reduce the carbon footprint of your scanning and printing.
