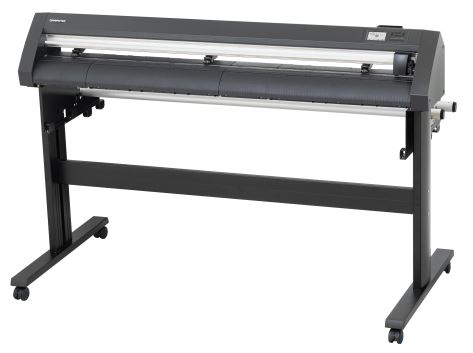

Graphtec CE8000-130 Desktop Cutting Plotter (1300mm/54 inch) with Stand
Graphtec CE8000-130 is a desktop 1300mm wide (54 inch), roll fed cutting plotter for making signs, decals, and labels, as well as heat transfer graphics for</span> garments and custom-made merchandise.
</div>
3 Years Lease
5 Years Lease
Description
Graphtec CE8000-130 is a 1300mm wide (54 inch), roll fed cutting plotter featuring fast cutting speeds and compatibility with a variety of both thin and thicker media.
Ease of use, an optical print and cut detection system,and the ability to cut multiple pre-printed graphics without user input make the Graphtec CE8000 Series ready for perfect teamwork with any printer.
The Graphtec CE8000 Series cutting plotters include Cutting Master 5, a plug-in software for Adobe Illustrator and CorelDRAW, Graphtec Studio 2 (for Windows) and Graphic Studio (for Mac) software, easy to use software for creating original designs and a Windows Driver.
Design Supply, a Graphtec Authorised Reseller, works closely with Graphtec to provide the best solutions available to get the job done for your business and maximise your opportunities.
With more than 35 years of experience in the large format market, Design Supply offers expertise and knowledge in tailoring the exact solution for your specific application.
KEY FEATURES
The Graphtec CE8000-130 Cutting Plotter is an easy to use, versatile, high quality, entry level desktop Cutting Plotter. Ideal for users based in a smaller work space, the Graphtec CE8000-60 Cutting Plotter automatically cuts a wide variety of media up to 1300mm/54 inches wide.

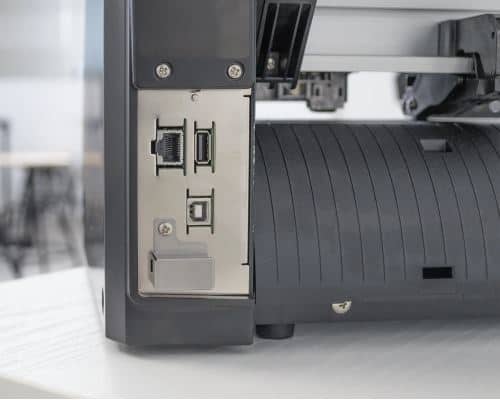

Easy to use for print and cut applications, the Graphtec CE8000-130 Cutting Plotter features Advanced Registration Mark Sensing (ARMS 8.0) system. ARMS is a registration mark sensor for print and cut jobs , which reads registration marks and accurately contour cuts designs that are output from any printer. A datalink barcode system, generates barcodes as part of the design, which enables hands free operation. Designs are then read by the CE8000-130, which automatically loads cutting information and processes print and cut jobs. A second USB port enables jobs to be run from a USB stick, without a PC. The LED touch panel on the front of the Cutting Plotter has 8 recallable tool conditions, ideal for storing cut settings for the most commonly used media, and saving time when changing the media type.
The Graphtec CE8000-130 is versatile, ideal for a wide variety of cutting applications including sticker and decal creation, window signage, window tint films, heat transfer apparel. The CE8000-130 is the best cutter for Self-Adhesive Vinyls, HTV Materials, Paper, Card and Stencil Materials. Perforated cutting is available for creating pop out decals with the backing still attached for easy distribution.
The Graphtec CE8000-130 Cutting Plotter delivers high quality results every time and features a rugged “workhorse” design. The ARMS system ensures accurate cutting on registration lines. When cutting thicker materials or intricate designs on thinner medias, the CE8000-130 features a Tangential Emulation Mode ensures clean and accurate corners . Improved tracking features stock media rollers with stoppers contribute to keeping the roll of media straight. Media set assist avoids media lift and shift when feeding.
SPECIFICATIONS
The Graphtec CE8000-130 Cutting Plotter has a maximum cutting speed of 1000mm per second in all directions and a maximum acceleration of 14.1m/s² at a 45° direction. The Graphtec CE8000-130 Cutting Plotter supports various cutting patterns such as perforation cut, with a maximum cutting force of 450g. The CE8000-130 has a maximum cutting area of 1270mm x 50m and a cutting area of guaranteed accuracy of 1250mm x 2m. The minimum mountable media width is 85mm and the maximum is 1372mm/54inch. The mountable media mass capacity is 17kg. There are three push rollers. The minimum character size is approximately 5mm and the mechanical resolution is 0.005mm. The blade is made of supersteel, and the media maximum thickness is up to 0.25mm. The CE8000-130 has 2MB of buffer memory.
The Graphtec CE8000 Series Cutting Plotters feature ARMS 8.0 (Advanced Registration Mark Sensing), an Optical Eye For Continuous Cut Capabilities delivering precise Print & Cut results by using sensors to detect registration marks and perform axis alignment. Improvements to the ARMS sensor algorithm means coloured marks can be read, improving compatibility with a wide variety of media types including holographic paper and reflective sheets. An expanded cutting area includes objects outside of the area enclosed by the registration marks, reducing media waste and improving production efficiency.
The Graphtec CE8000 Series Cutting Plotters feature a Data Link function which is a barcode data management for continuous cutting. By reading the Graphtec original Barcode, the Graphtec CE8000-130 automatically detects its linked data from PC or USB flash memory.
The Graphtec CE8000 Series Cutting Plotters include Cutting Master 5 software, a Graphtec plug-in software for Adobe Illustrator and CorelDRAW. Cutting Master 5 is easy to use, and enables the best performance from the CE8000 Series. It sends cutting data to the CE8000 Series Cutting Plotter and includes a variety of functions including; preview, registration mark creation, tool conditions, cut job settings and more. Trim and crop marks for Adobe Illustrator are available with Cutting Master 5.
The Graphtec CE8000 Series Cutting Plotters include Graphtec Studio 2 (Windows) software, an easy to use graphic design software for creating original designs. Graphtec Studio 2 has a variety of enhanced creating and editing functions and configures the cutting conditions and other settings on the CE8000 Cutting Plotter. Create designs using auto-shapes, various line types and shading. Edit text by using features such as rotate, mirror, fit to shape and more. Auto-trace is also available using various image formats including bmp, tiff, jpeg, gif and more . EPS, DFX, other raster format files, Ai, CMX and PDF file formats are supported and graphics created with other popular design software can be imported into Graphtec Studio 2. Graphtec Studio 2 can layer, output by colour, and insert a weeding line. For Macintosh compatibility, Graphtec Studio software is available.
Optional accessories for the Graphtec CE8000-130 include a Cutting Media Table, Media Baskets, Roll Media Stocker, and specialist cutting blades. A special car film blade is available, as well as a paper/cardboard blade.
Built to last, Graphtec Cutting Plotters are renowned for precision engineering and stringent production practices for years of profitable use. As you would expect from Graphtec, reliable performance is a given. For added peace of mind, Graphtec CE8000 Series Cutting Plotters feature a 2 year warranty.
There is a complete range of Graphtec Cutting Plotters, large format printers, and other hardware and consumables available from Design Supply’s large format specialists whose expertise can help you determine the best solutions for your particular cutting needs.
WHAT'S IN THE BOX
Graphtec CE8000-130 Desktop Cutting Plotter, 1300mm wide: CE8000-130
Stand
Roll Feeder:
Loupe (PM-CT-001)
Cutting Blade 0.9mm Supersteel: (CB09UB-P)
Blade Holder: 0.9mm (PHP-33-CB09N-HS)
Cutter plunger (PHP33-09N-HS)
USB Cable (2.9 m long)
Power Cord
Safety Guide
Setup Manual
2 year warranty</p>
Options:
Cutting Media Table for 400mm & 600mm: OPH-A45
Media Catch Baskets: PGO111
Roll Media Stocker: OPH-A57</p>
Media Flange Kit
Additional Push Roller Kit
Water-based Fiber-tipped Pen (KF700 Series Fiber tip)
Fiber-tipped Pen Holder (PHP31-FIBER)
Consumables:
Graphtec 0.9mm Supersteel Blade 45°angle : CB09UB
Graphtec 0.9mm Supersteel Blades 45°angle(5) (for PVC film): CB09UB-5
Graphtec 0.9mm Supersteel Blades for Car-
film, 60°angle(5) (for PPF): CB09UB-K60-5
Graphtec 1.5mm Blade for paper/cardboard, 45°angle(5): CB15U-5
Graphtec 1.5mm Blade for paper/cardboard, 30°angle(5): CB15U-K30-5
Loupe: PM-CT-001
Fiber-tip pen holder: PHP31-FIBER
Black Water-based fiber-tip pen(10 pens): KF700-BK</p>
Red Water-based fiber-tip pen(10 pens): KF700-RD
Ballpoint pen holder for KB700 pen: PHP34-BALL
Black Oil-based ballpoint pen(10): KB700-BK
USB cable: (PM-ET-001)
</div>
DATA SHEETS

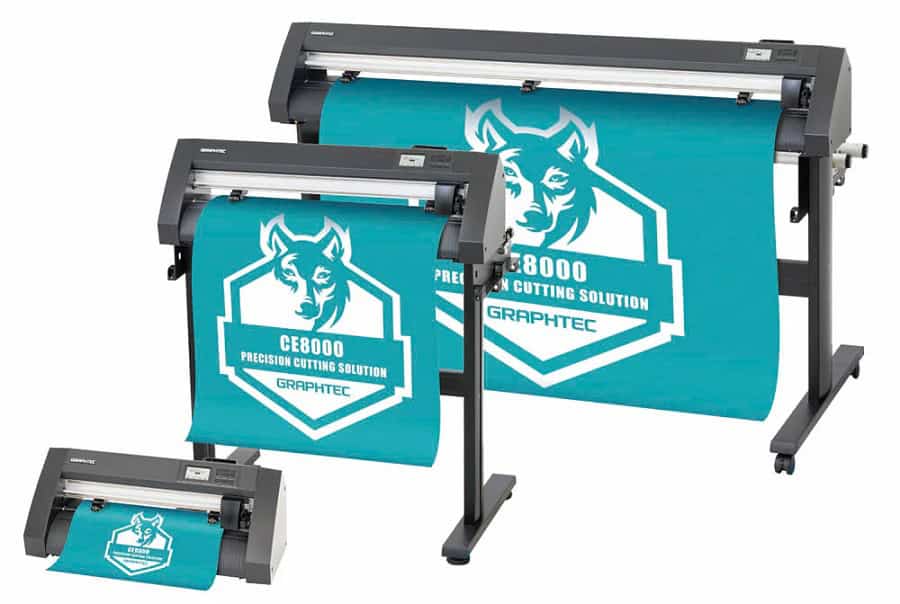

Graphtec CE8000-40, 60, 130 Series Brochure
<p><div id=”TMPwmHiddenDiv”>
<div id=”TMPwmHiddenDiv”>
<div id=”TMPwmHiddenDiv”>
</div>
MANUFACTURER INFORMATION
Graphtec Corporation, formerly Watanabe Instruments, manufactures input and output devices in Japan, with subsidiaries in the USA, Europe and Australia. Founded in 1949 the company released its first plotter in 1961.
The Graphtec range of market leading plotters are the accumulation of 70 years of pioneering technological development. From desktop-sized plotters through to industrial grade flat bed cutting tables, Graphtec have professional solutions in a vast array of industies where precision is key, including Aerospace, Sign Makers, Apparel Designers and Architects.
