Canon TC-20 A1 Printer

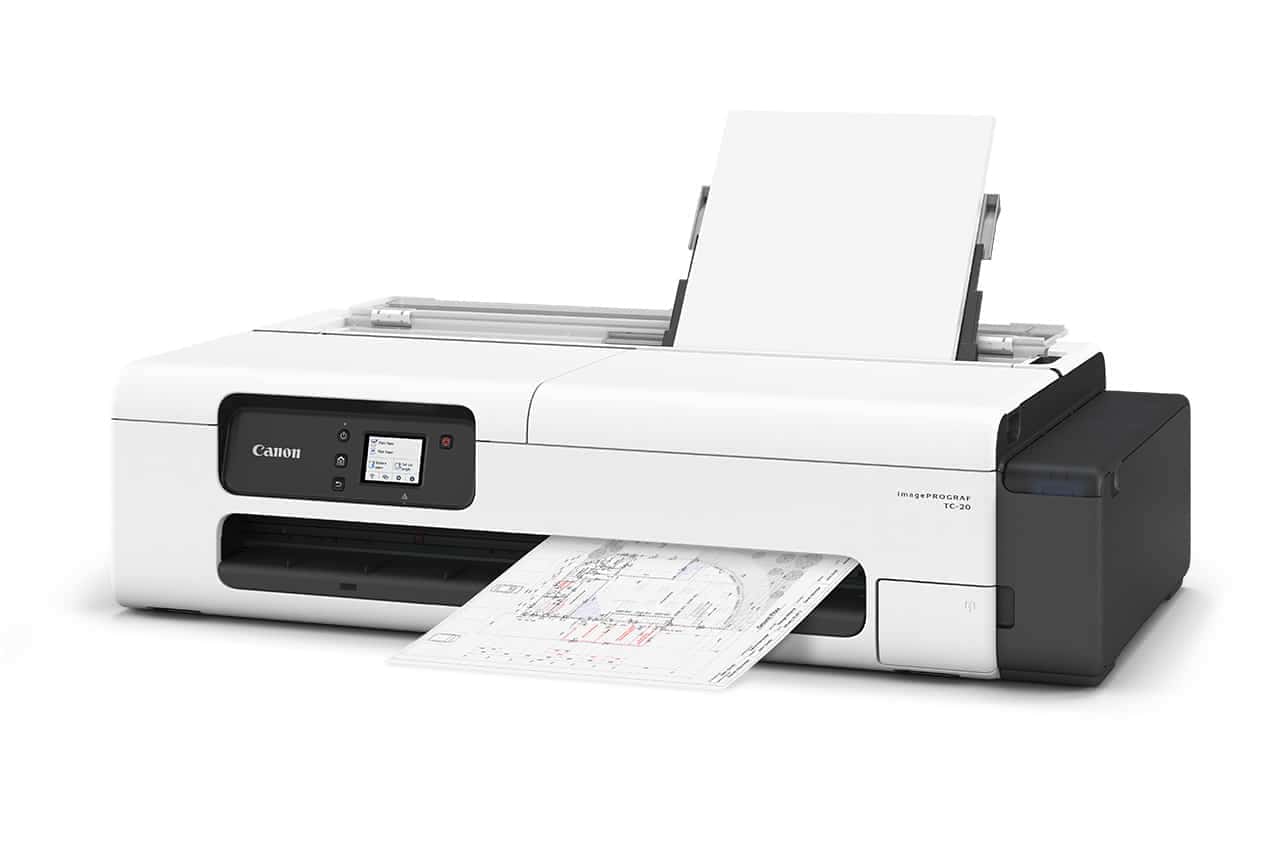

Canon TC-20 printing document and extended paper portion

A person installs a paper roll into the Canon TC-20

Close up of the panel of the Canon TC-20

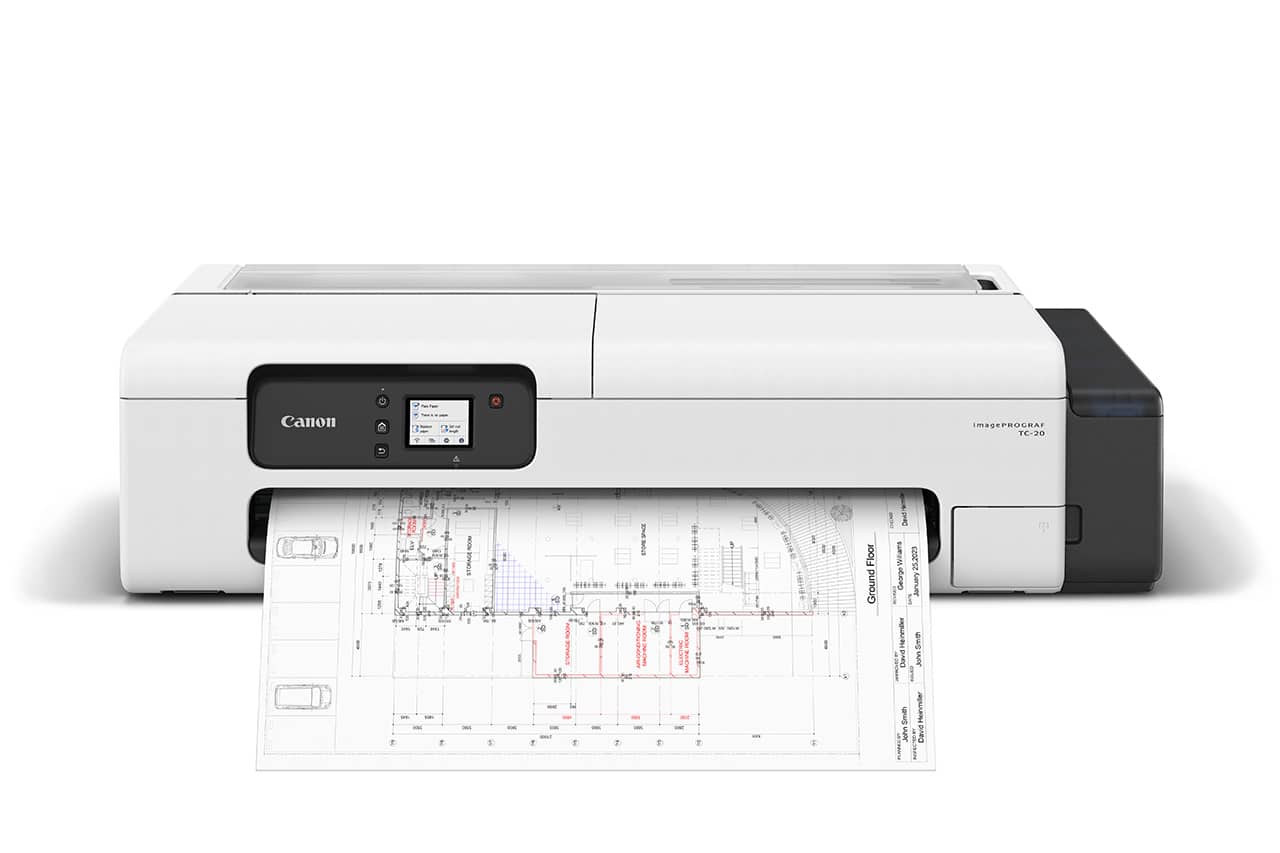

Canon TC-20 a compact and sustainable A1 to A4 desktop printer

Description

Canon TC-20 A1 Printer

The Canon TC-20 printer a desktop solution for A1, A2, A3 and A4 prints. Ideal for occasional needs when space is at a premium.

Printing more than around 5 A1 prints a week? Check out the Canon TM-240

Need help when it arrives? We will help, just check our reviews here.

Software (some will be cloud based)
Quick Utility Tool Box, Print via mobile devices = Print utility for IPAD, Canon Print Service (Android)
Canon Direct Print Plus, Driver Select, Publisher Select 3, Free Layout Plus, Poster Artist (web version)

If you need some paper such as DS Jet White MasterQ 90gsm 610mm x 50m Large Format paper then add that to your order.

VIDEOS

Canon TC-20 Large Format Printer<br /> <center></center>

KEY FEATURES

The Canon imagePROGRAF TC-20 is a compact, desktop device that helps you produce professional-standard large format prints. Whether working from home, at a retail shop front, work site or school, the TC-20 is effective, simple, and fast for creating attractive, high-quality prints.

The Canon imagePROGRAF TC-20 is easy to operate: ink refills, paper loading and maintenance are all accessible from the front. Remaining amount of ink and paper roll can be checked on a smartphone.

Made with sustainability goals in mind and keeping total ownership costs low, the Canon imagePROGRAF TC-20 uses easily recyclable large plastic ink bottles to reduce refill frequency. The TC-20 uses less energy than similar models on the market.

No longer will your creativity be held back by budget or space constraints with the Canon imagePROGRAF TC-20. Whether you need technical drawings for working from home, or drawings, Gantt charts and warning posters at a construction site, or retail point of purchase signs and sales reports, or posters and flyers for restaurants, the Canon imagePROGRAF TC-20 is the ideal solution for the budget, the limited space, and the sustainability conscious user.

SPECIFICATIONS

The Canon imagePROGRAF TC-20 is a stylish, compact desktop device with a footprint of 968 x 525 x 245 mm. The printer can easily sit on a desk or shelf.

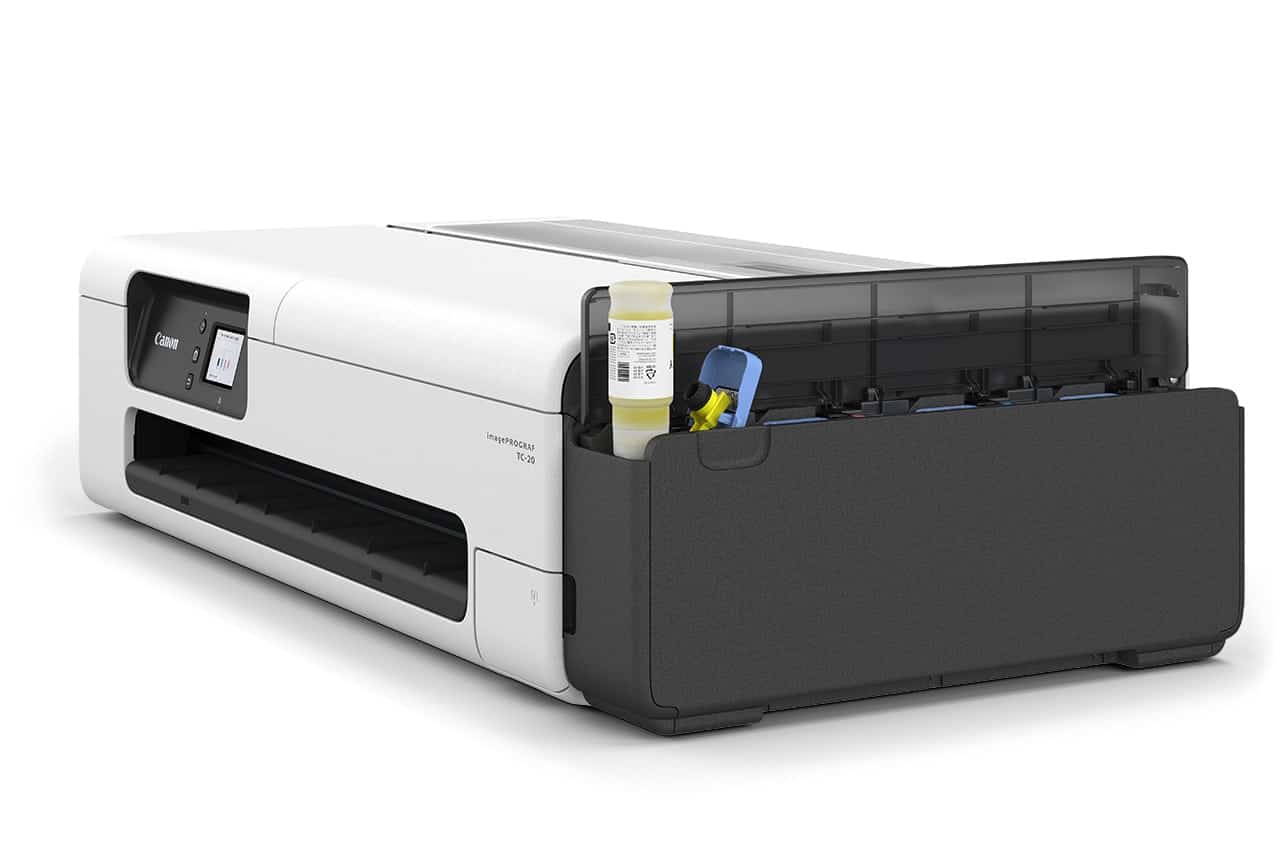

The Canon imagePROGRAF TC-20 is easy to operate: ink refills, paper loading and maintenance are all accessible from the front. The easily recyclable ink bottles (new black, cyan, magenta and yellow pigment inks) contain 70ml of ink, reducing the refill frequency and total cost of ownership. The built-in large capacity ink tanks are easily accessible from the front side of the printer, and can be refilled without dirtying hands or clothing. The shaftless roll holder makes roll paper loading effortless, and reduces the amount of space needed for the printer.

The Canon imagePROGRAF TC-20 includes a built-in auto sheet feeder, delivering continuous printing between roll paper and cut sheets (A4 x 100 sheets or A3 x 50 sheets).

The Canon imagePROGRAF TC-20 includes Direct Print Plus, and integrated software for hybrid support so switching between office and home printing is easy. Multiple files in different formats can be input at a time with not need to launch applications for each file. Files can be printed directly with the flexibility to print A3 size drawings for checking, either at home or at the office.

The Canon imagPROGRAF TC-20 delivers comparable crisp lines to higher end models. The pigment ink has excellent water resistance, meaning drawings and prints are easier to handle outside and less likely to smudge when using a highlighter.

The Canon imagePROGRAF TC-20 has an EPEAT Gold rating, with reduced packaging and low energy consumption, helping users meet sustainability goals. The approximate energy consumption when in operation is 28W, and in the standby mode, 1.8W or less.

Optional items available for the Canon imagePROGRAF TC-20 include an A1 Desktop Basket for receiving A1 prints or a Printer Stand and Basket. Additionally, PosterArtist software is a free app available via the Web and is ideal for easily making vivid posters, with an abundance of editable templates for posters and flyers.

As you would expect from Canon, reliable performance is a given. For added peace of mind, Canon imagePROGRAF printers and print heads feature a 12-month warranty. Additional 3 and 5 year warranties are available.

WHAT'S IN THE BOX

Canon imagePROGRAF TC-20 24” printer

Power cable

1 set of ink refills 70 ml (BK, C, M, and Y)

Set up guide

Quick Guide

Safety/Standard Environment leaflet

User software CD-ROM (Windows)

EU Biocide sheet

Important Information Sheet

Software included:

imagePROGRAF TC Printer Driver

Direct Print Plus

Poster Artist (free via the Web)

Options:

A1 Desktop Basket: BU06

Printer Stand and Basket: SD-24

Consumables:

PFI-050(70mm): Black, Cyan, Magenta, Yellow

Print Head: PF-07

Cutter Blade: CT-08

Maintenance Cartridge: MC-32

Warranty Support Options:

12 Months Canon replacement warranty

Canon Easy Service Plan 3-year on-site next day service – imagePROGRAF 24″ Pigment

Canon Easy Service Plan 5-year on-site next day service – imagePROGRAF 24″ Pigment

DATA SHEETS

Canon imagePROGRAF TC-20 Datasheet

Canon imagePROGRAF TC-20 Magnificent 8 Brochure

Canon imagePROGRAF TC 20M Magnificent 8 Brochure

MANUFACTURER INFORMATION

The Canon imagePROGRAF TC-20 large format printer uses a number of advanced Canon proprietary technologies. Bi-directional printing design of the imagePROGAF printers means print times are significantly faster than conventional print systems which require multiple passes for each line to compensate for uneven droplet size and placement on the paper. An innovative ink-nozzle manufacturing method results in precisely uniform minimum 5 picolitre droplets resulting in 2400 x 1200 dots per inch (dpi) resolution.

Canon’s innovative 4 colour pigment ink system incorporates new black, cyan, magenta and yellow pigment ink. Canon pigment ink systems have an innovative polymer structure that result in exceptional scratch resistance and protection from colour fading, while reducing bronzing to ensure durable, stable output.

Canon’s new processing engine and printer architecture deliver further accuracy to ink ejection and limitation of colour unevenness. The new L-COA (Large Format printer Common Architecture) PRO image processing technology instantly determines optimal droplet combinations to deliver best results that are faithful to the original image. L-COA PRO delivers faster, high-quality output and print optimization by carefully calculating best results for each print mode and media using various factors including colour reproduction, tonal gradations, black density, graininess, glossiness, anti-bronzing and elimination of metamerism, all of which contribute to creating an amazing printed image.
